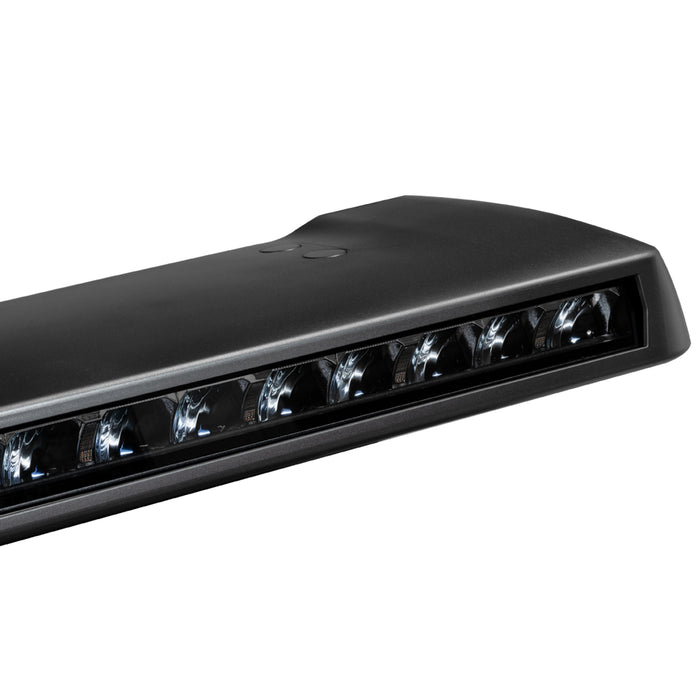

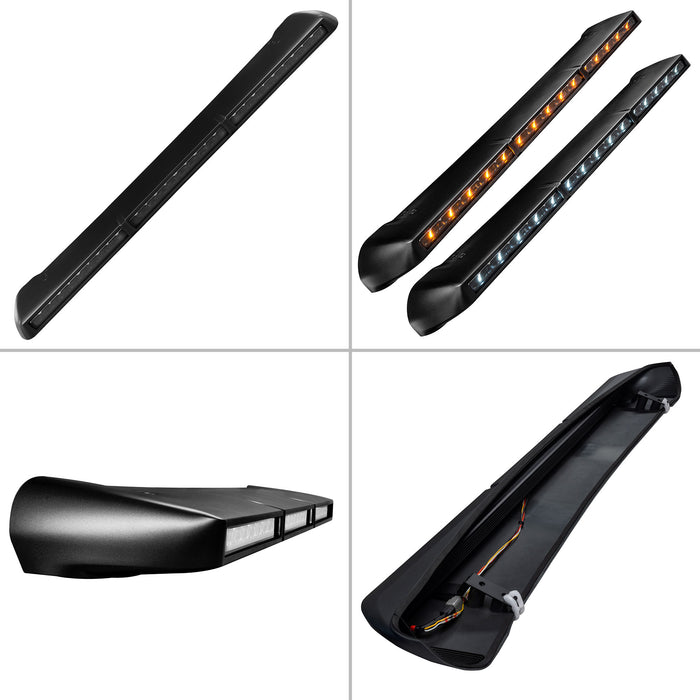

Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco

ORACLE Lighting Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco

$1,087.95 - $1,196.95
$1,087.95
$1,087.95 - $1,196.95
$1,087.95
  • Product Description
  • Features
  • What's Included
  • Installation

  • ORACLE Part #
    5888-023 : Black
    5888-023-MF : Carbonized Grey

    This item is not eligible for Free Shipping*

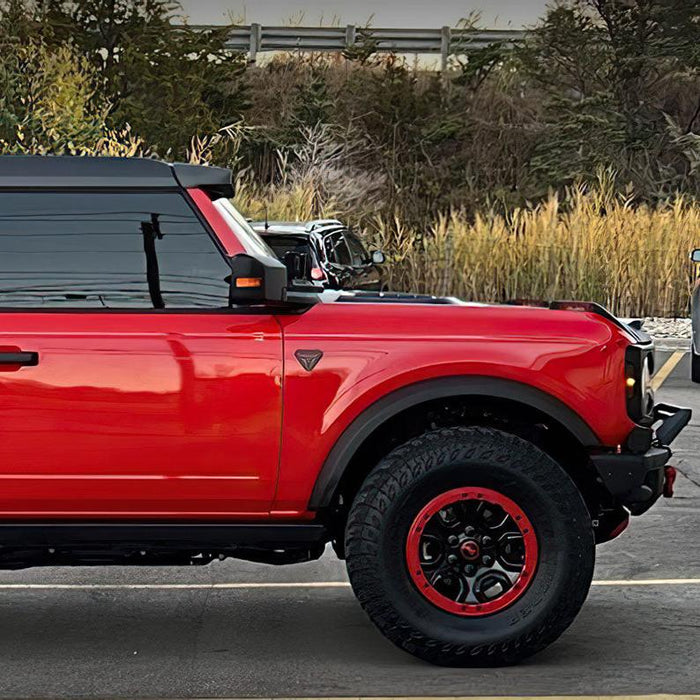

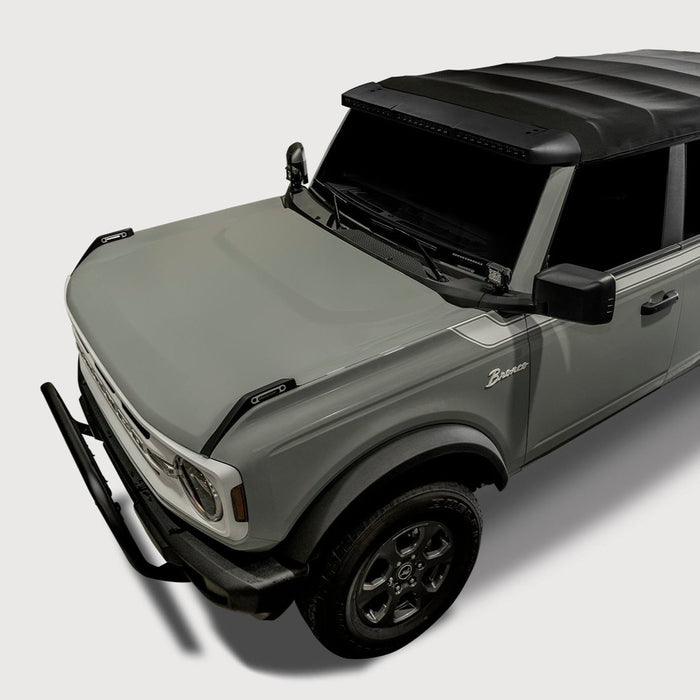

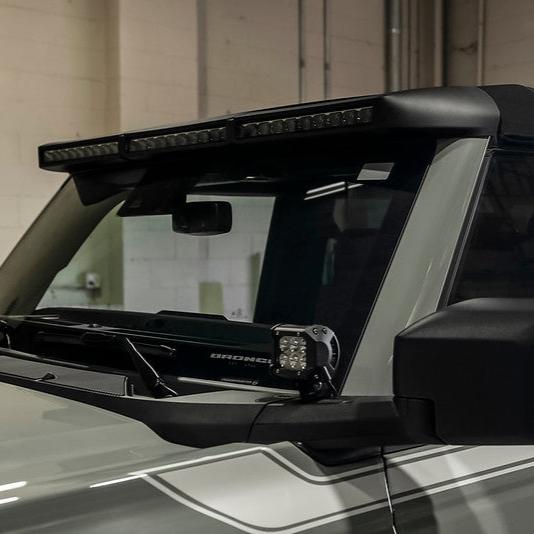

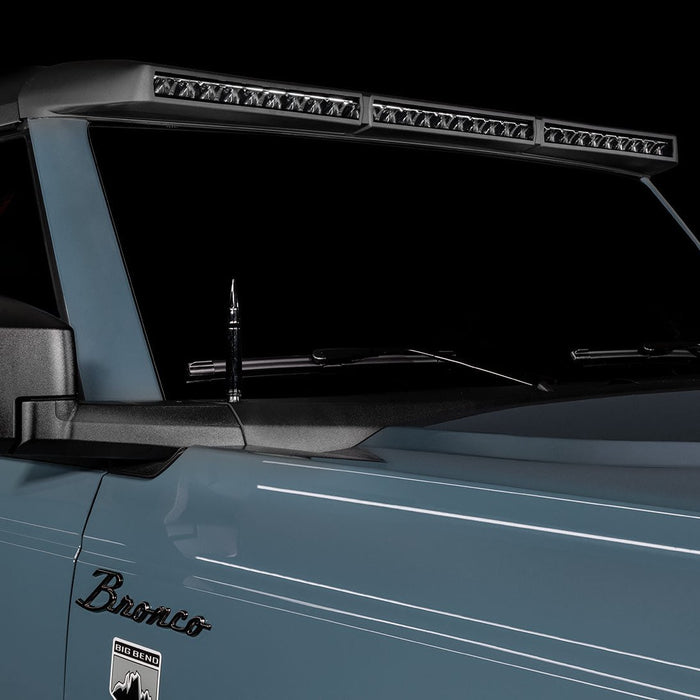

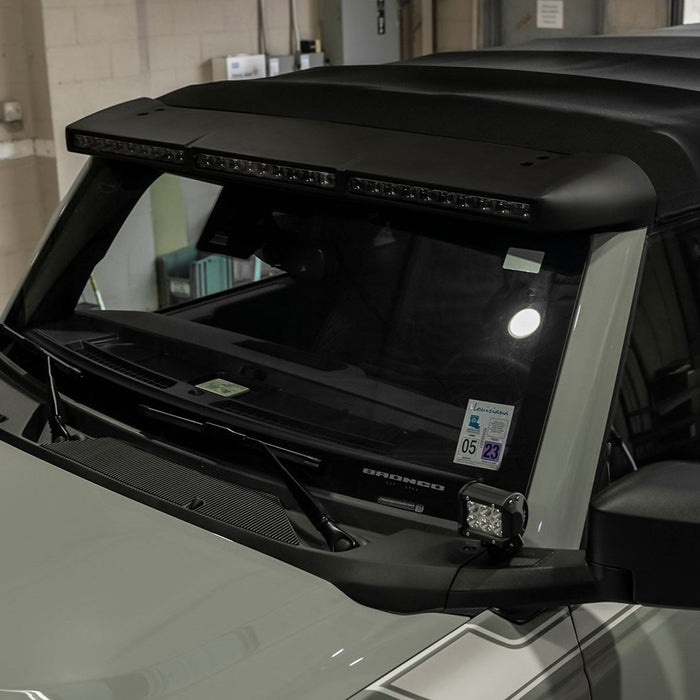

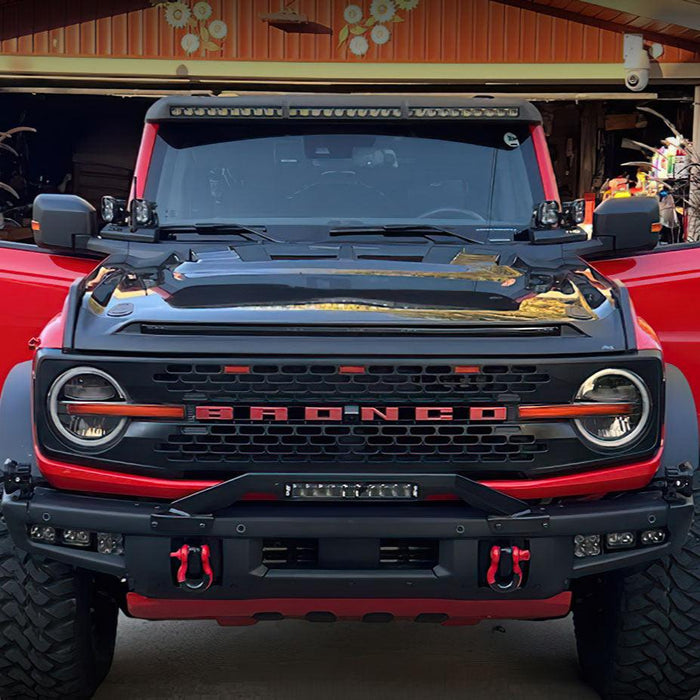

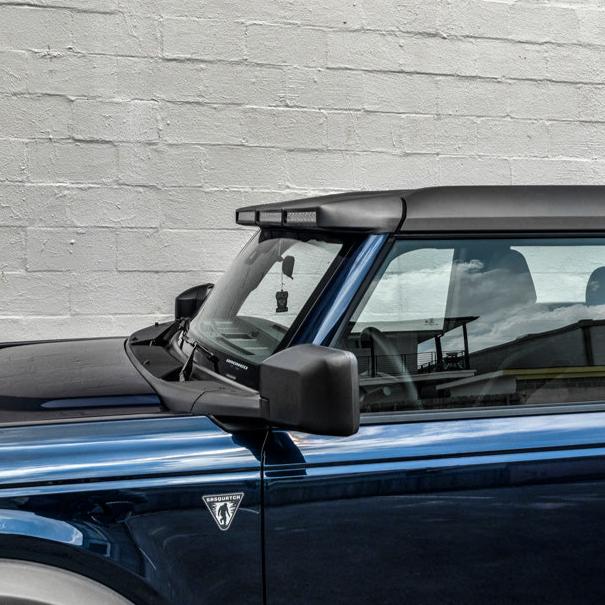

    If you are in the market for a high-mount LED Light bar and want to retain an almost factory look, the new ORACLE Integrated LED Light Bar is for you! While other offerings look obviously after-market or like an after-thought, our Patent-Pending design with its molded cowling integrates into the factory roof line. This product further adds to the rugged and practical style of your 2021 or newer Ford Bronco.

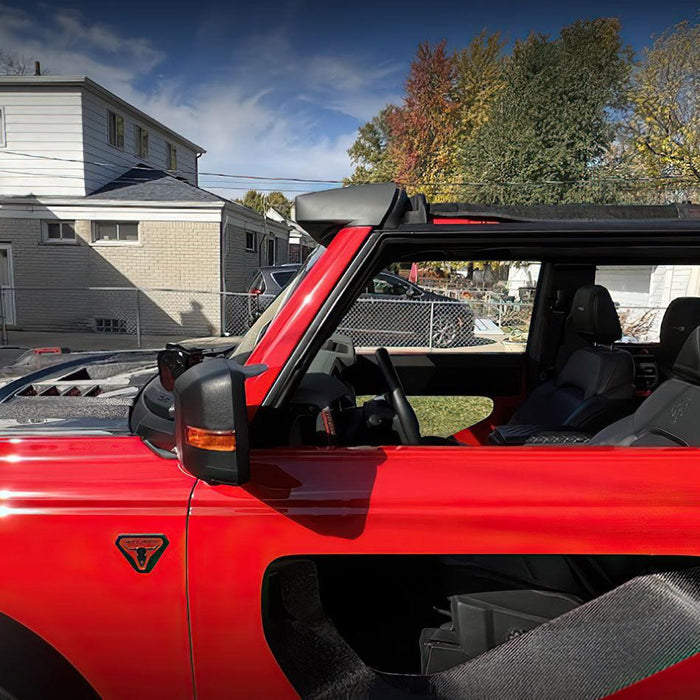

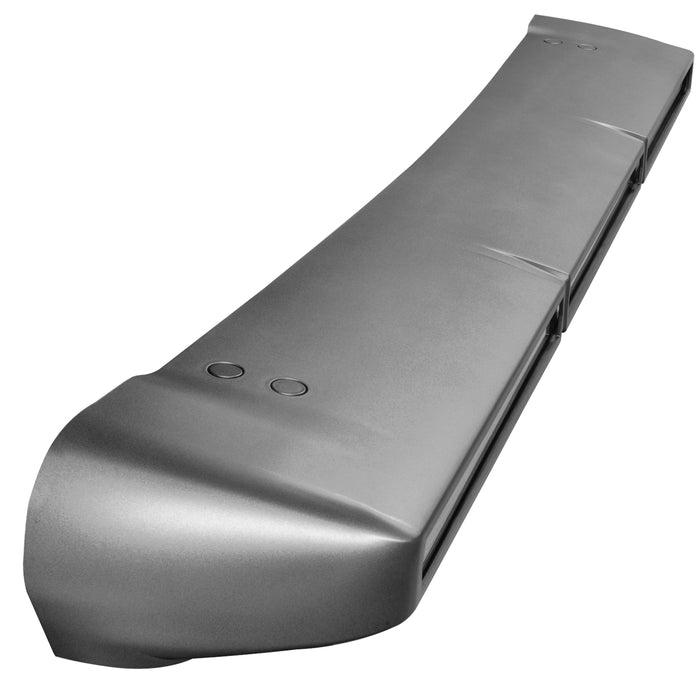

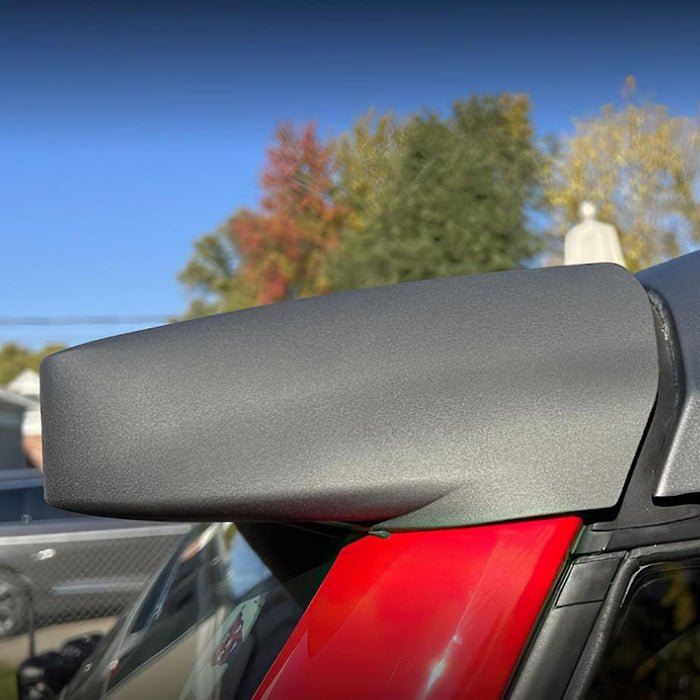

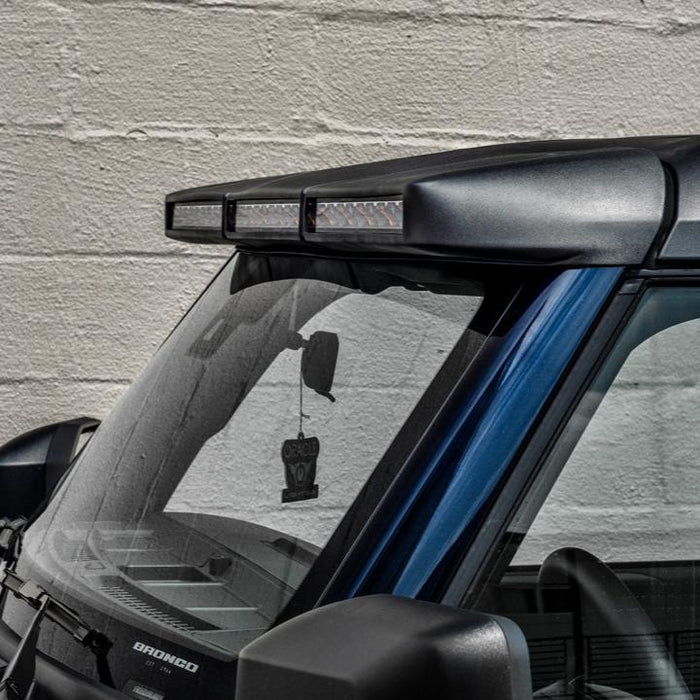

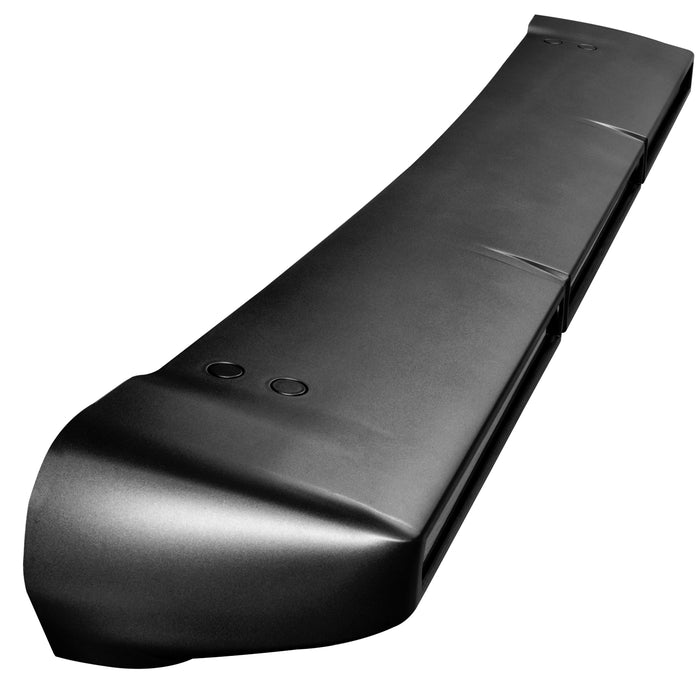

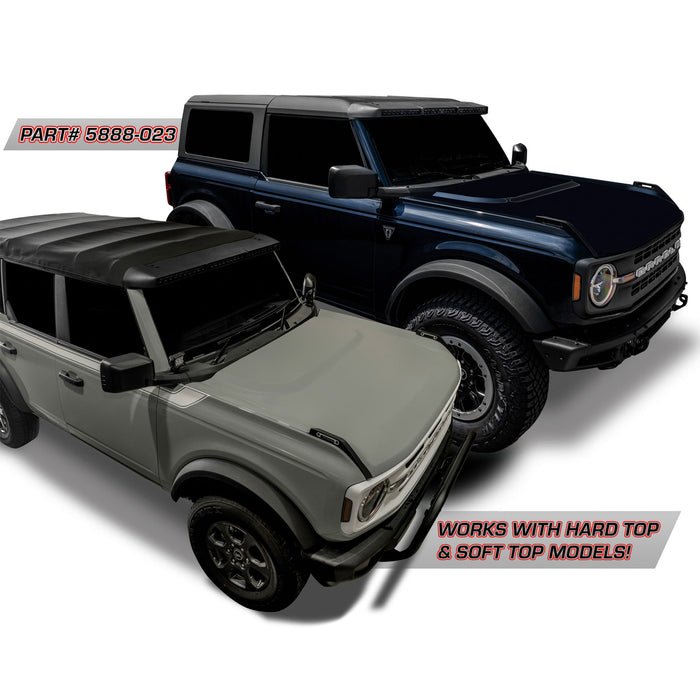

    Along with blending in with the factory design, the unique cowl design also provides a quieter and more aerodynamic installation compared to traditional LED light bar setups. The polycarbonate housing is designed to match the styling of the factory hardtop but can be installed on soft top Broncos as well, it even retains all functionality when you might want to go topless!

    Mounting the system is easy using the factory hardware and only needing the tools included in your glovebox. The ORACLE Light Bar System mounts to your late model Bronco using the factory accessory mounting points and factory hardware for an easy, DIY installation experience!

    In addition to the color options offered the housing can also be painted to match the color your truck came with from the factory. We recommend using a professional painter to properly prep, prime, and color match paint the housing.



  • Features and Benefits:
    - Aerodynamic Integrated Housing Design
    - High-Powered Lighting 30x 8W LED Main Light
    - Selectable Amber or White Clearance Lights
    - Precision LED Reflector-Facing Technology
    - DIY Install- No Fabrication/ Modification Required
    - Mounts using Factory Hardware
    - Under/Over Voltage and Reverse Polarity Protection
    - Electronic Thermal Management
    - Innovative Patent-Pending Design
    - Designed and Engineered in the USA
    - LED Lifespan 50,000+ Hours
    - 1 Year Warranty


    Driving Beam Specifications:
    - Raw Lumen Light Output: 18,000LM
    - Effective Lumen Light Output: 14,200LM
    - Peak Intensity: 420,000CD
    - Total Wattage: 240 Watts
    - Total Amp Draw: 14A @12V DC
    - Beam Angle: 40° Driving Beam
    - Max Projection Distance: 1Lux@648M
    - Color Temperature: 5500K-6000K
    - Advanced Optic Design for Optimal Visibility


    Material Specifications:
    - Outer Housing Material: Polycarbonate
    - Lamp Housing Material: 6030 Aluminum
    - Reflector Material: Plated Polycarbonate
    - Lens: Material: Lexan Polycarbonate
    - Lamp Finish: Polyester Powder Coat
    - Stainless Steel Anti-Fog Breather Valves
    - Molded IP68 Waterproof Connectors
    - Waterproof Rating: IP68 Ingress Protection

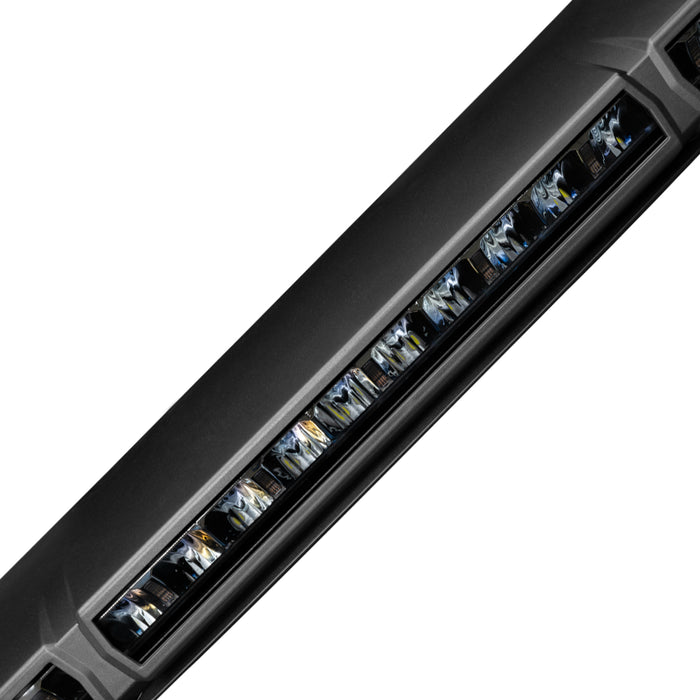

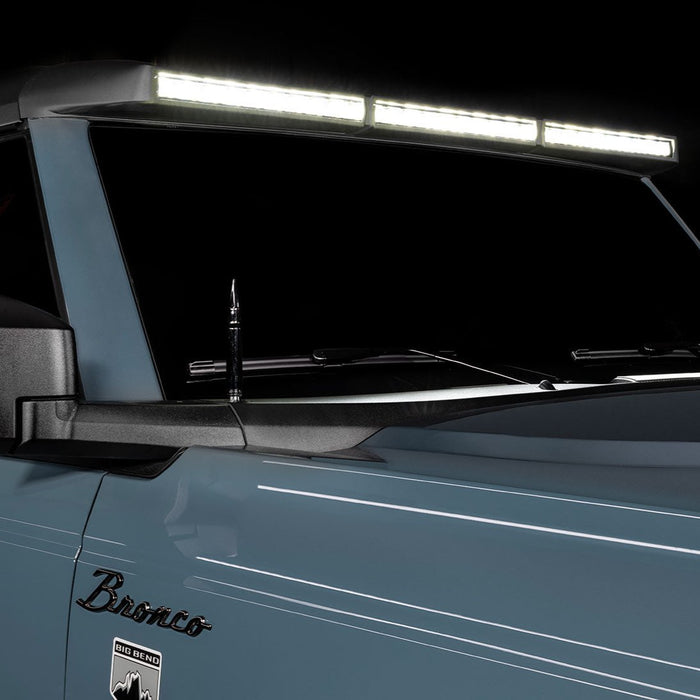

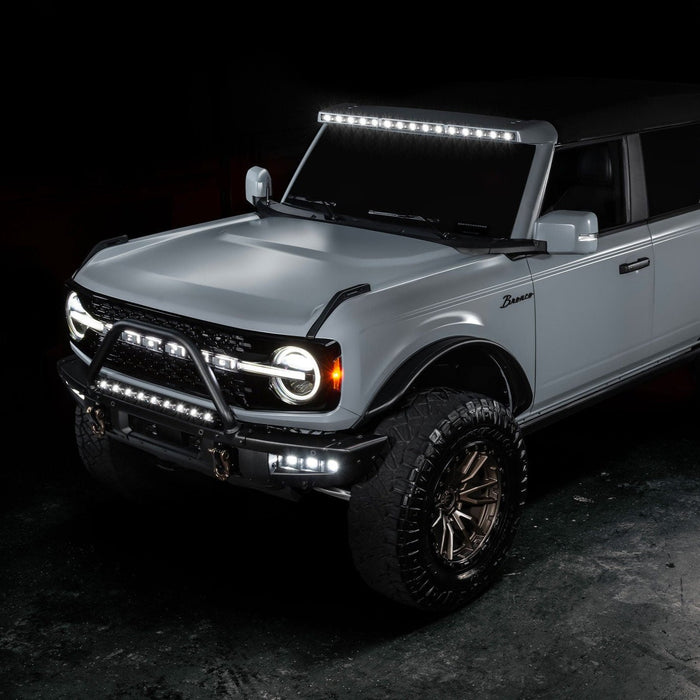

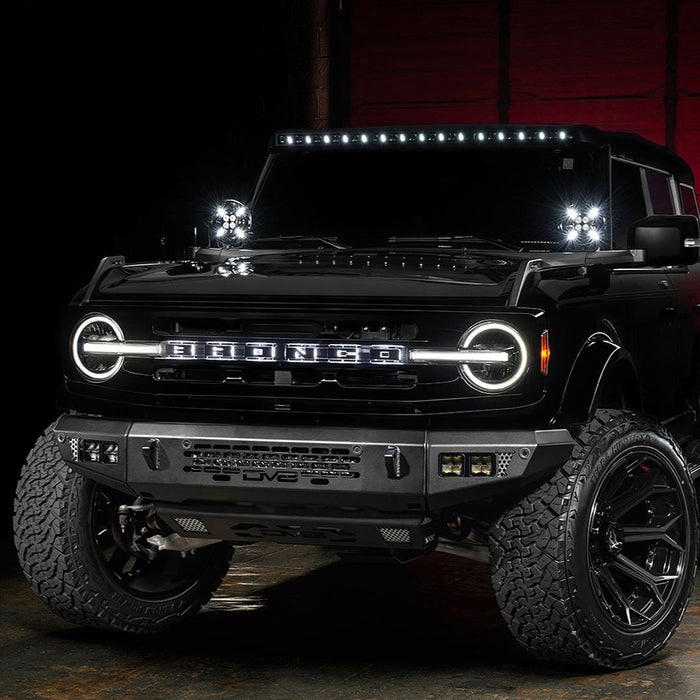

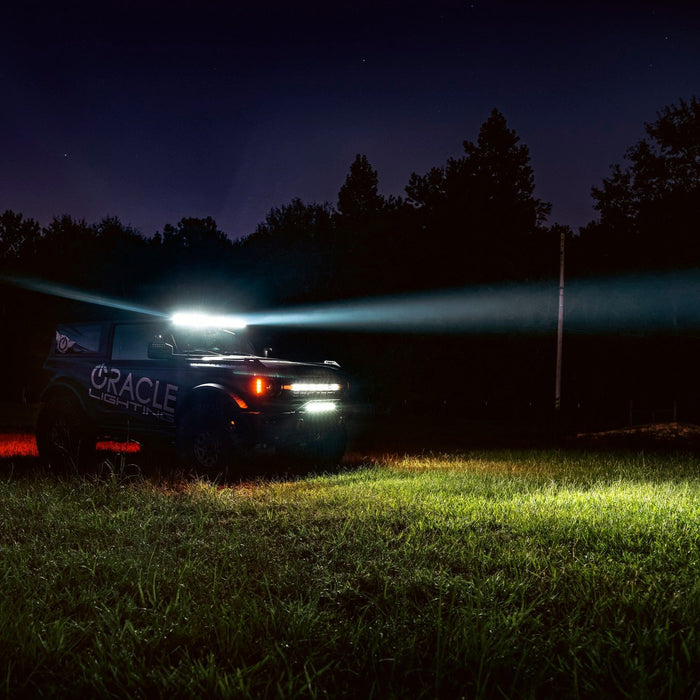

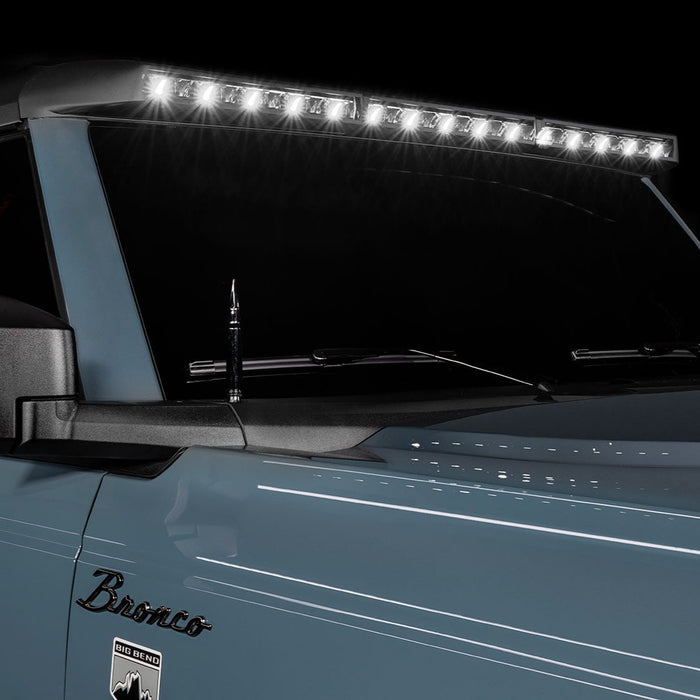

    The Ford Bronco Integrated LED Light Bar utilizes reflector facing LED technology, elevating it above basic and more common light bars. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters.

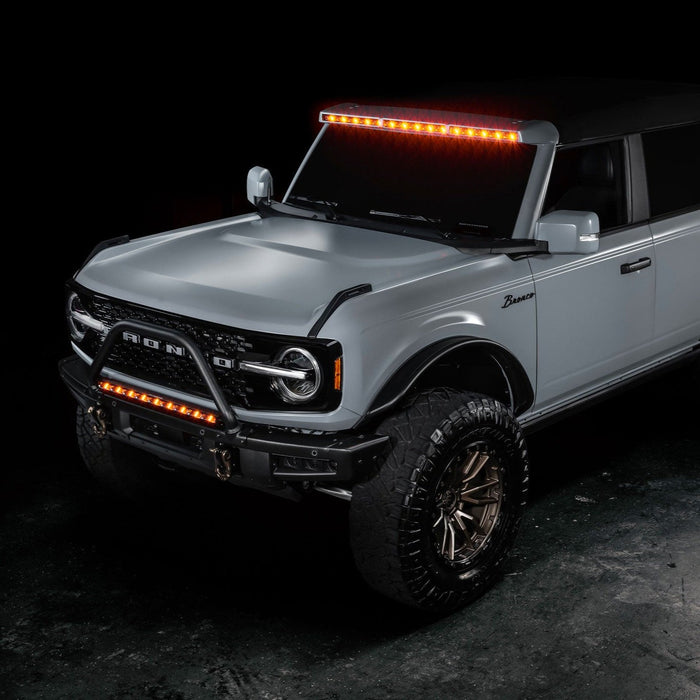

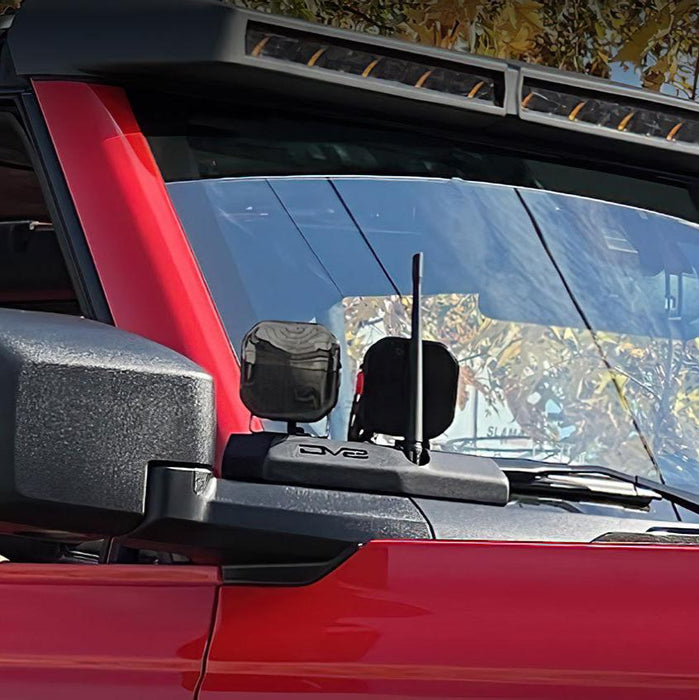

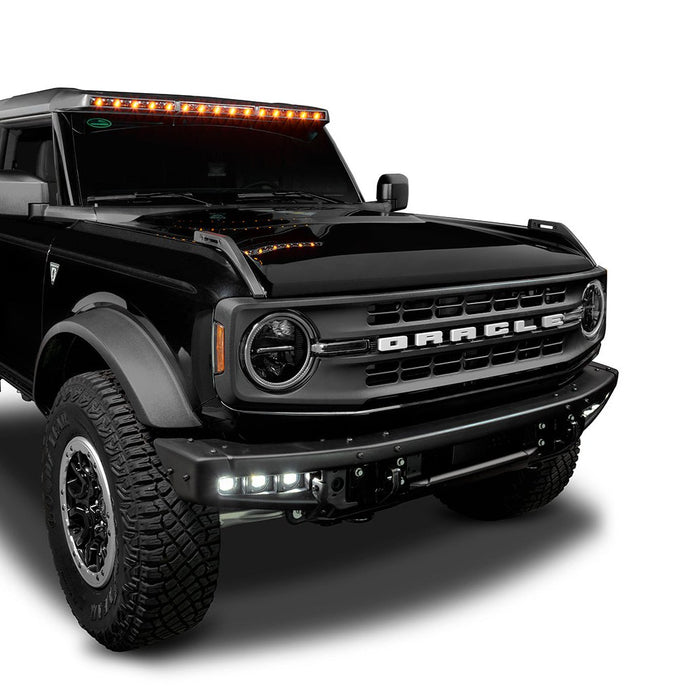

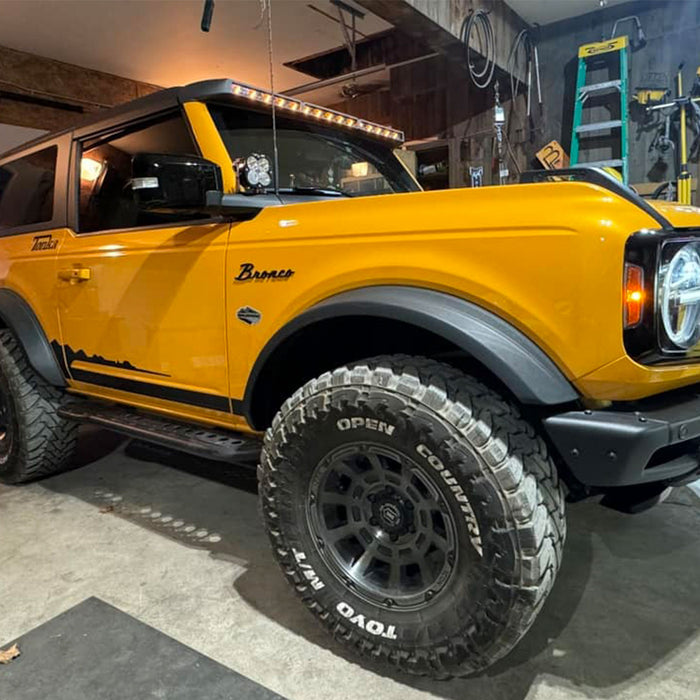

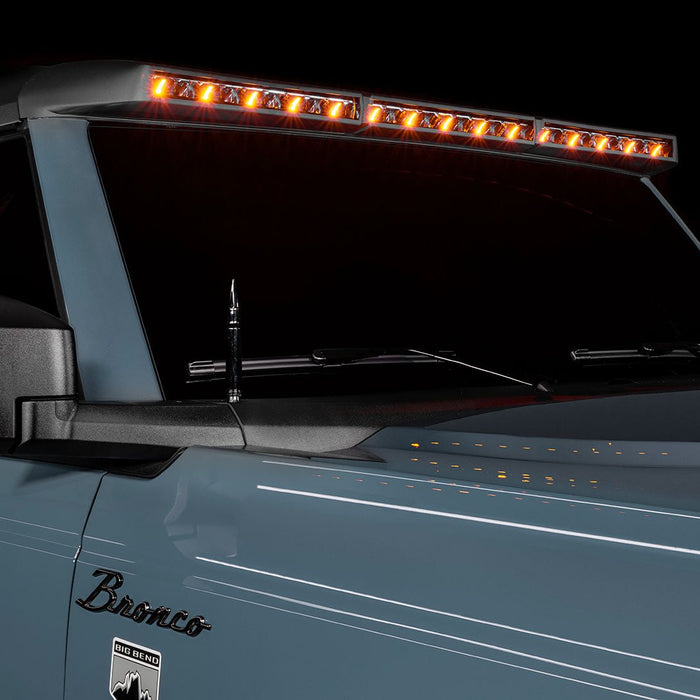

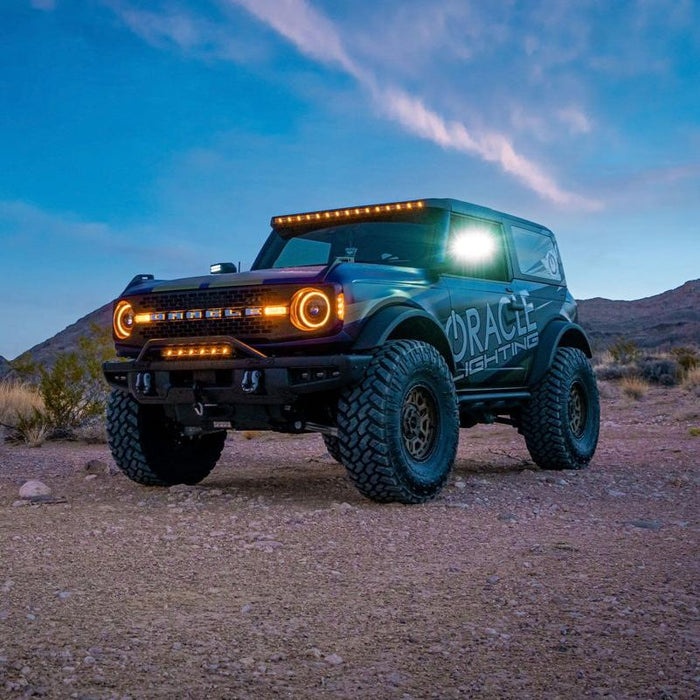

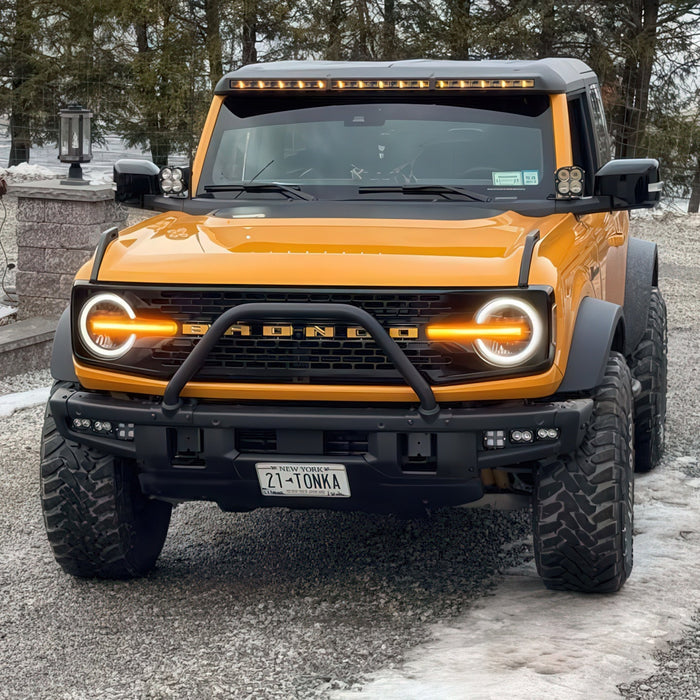

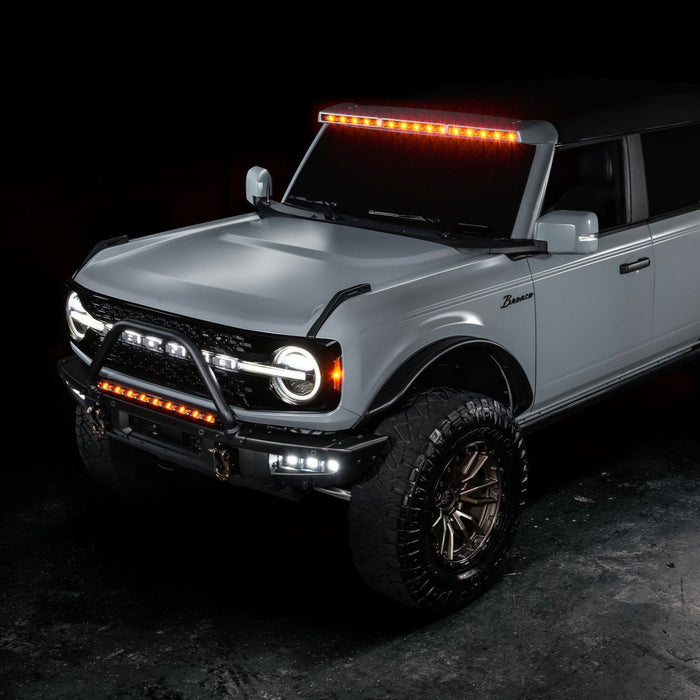

    This system also features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or simply leave them disconnected if you prefer not to use the additional clearance light feature on your Bronco.


    If you do not have Aux Switches, we recommend adding our wiring harness. CLICK HERE

    If you do have Aux Switches, we recommend adding our wiring harness. CLICK HERE

    Important Notes:
    - This product is not compatible with the 2021+ Ford Bronco Everglades model with a Pillar Snorkel.

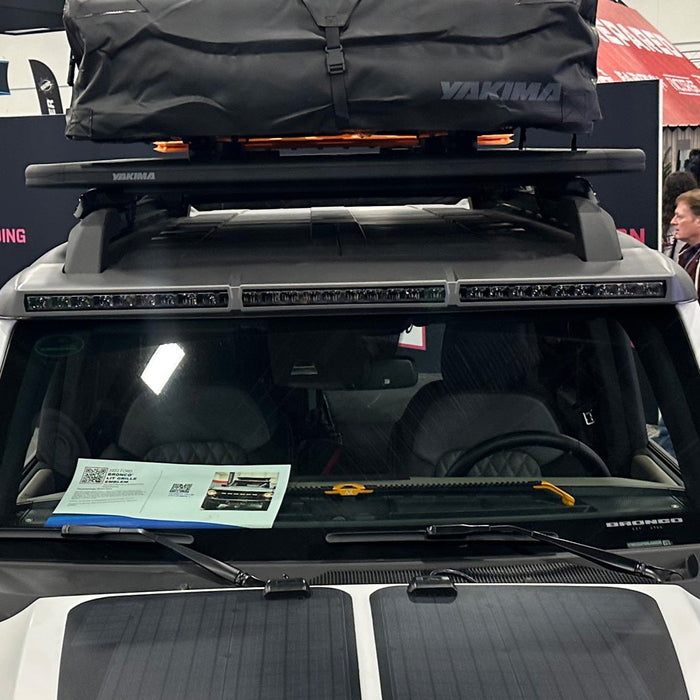

    - This product is currently not suitable for use with models outfitted with roof racks.
    - As with any Roof Mounted Light-Bar set up, High Powered Car-Washes with overhead brushes should be avoided.
    - To ensure proper clearance with the light bar housing, use 15" wiper blades when replacing your windshield wipers and opting not to use the provided ones.

  • (1) Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco
    (4) Accessory Bolt Covers
    (2) 15" Wiper Blades for Clearance
    (6) Steel Truss Plates
    Installation Hardware





  •

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jason
Light bar

I absolutely love the look and it works very well for off roading at night . But now I have hit an owl or hawk and the plastic molding is coming apart

User picture User picture
M
Matthew West
Happy Customer

Oracle's Intergrated light bar is very easy to install and is exceptionally bright. And as light bars go, the wind noise is practically unnoticeable at freeway speeds with no chatter from the cowl. Very happy with this light bar both in quality and performance and it will fetch a lot of compliments.

User picture
J
Jeff
Great Light Bar....Needs slight alteration with soft top

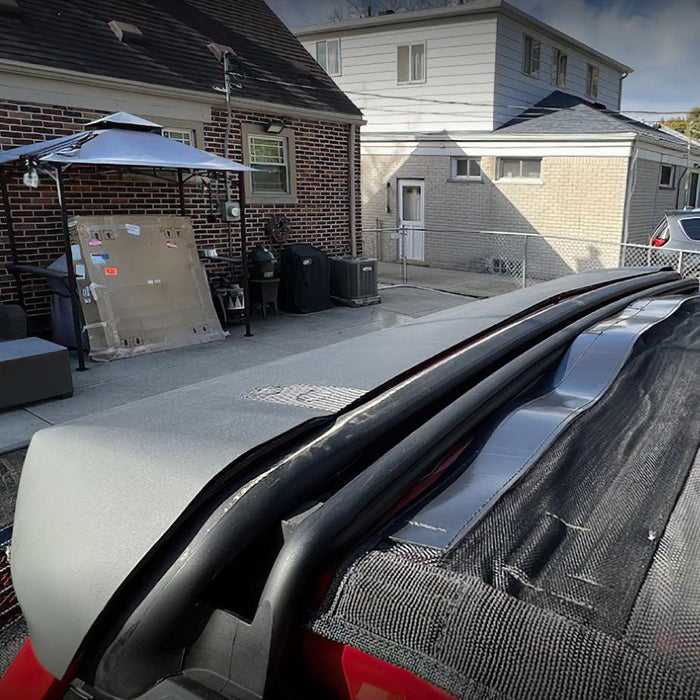

Install was super easy and straight forward. The only issue is if you have a soft top like I do, the housing for the light bar can interfere with the operation of your top. A quick call to Oracle and they sent me a video clip explaining how to trim the housing to allow full operation of the top. Only thing that would make this better is if it fit with soft top without trimming. Light bar is very bright and marker lights look great! Oracle customer service was fantastic as well!
