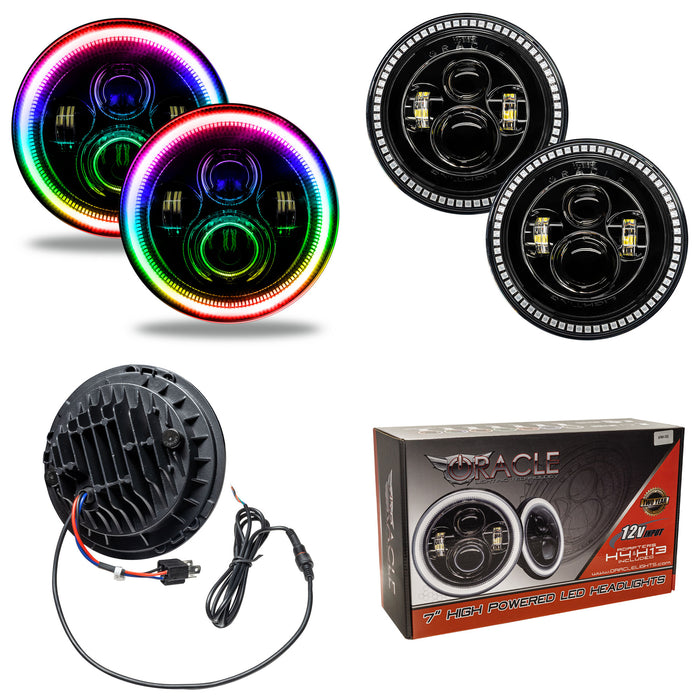

7" High Powered LED Headlights (Pair) - Black Bezel

ORACLE Lighting 7" High Powered LED Headlights (Pair) - Black Bezel

$289.95 - $511.95
$289.95
$289.95 - $511.95
$289.95
  • Product Description
  • Features
  • What's Included
  • Installation
  • Part Numbers

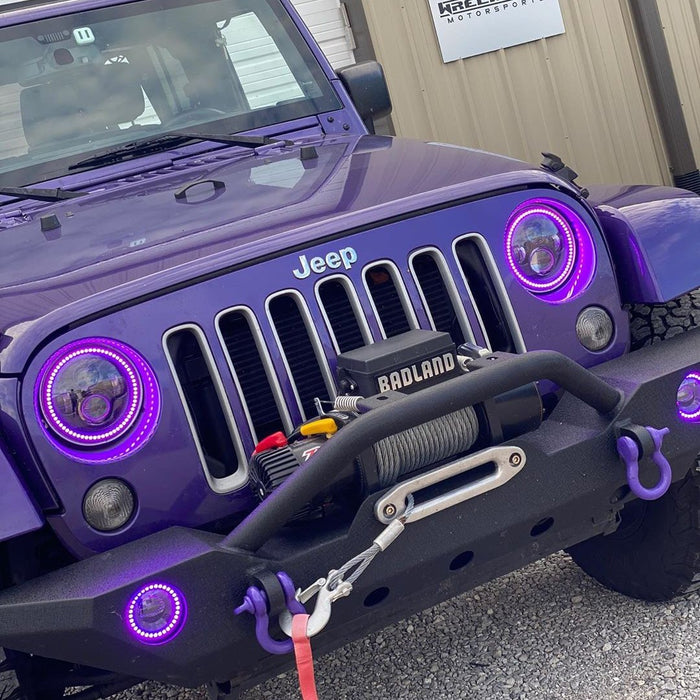

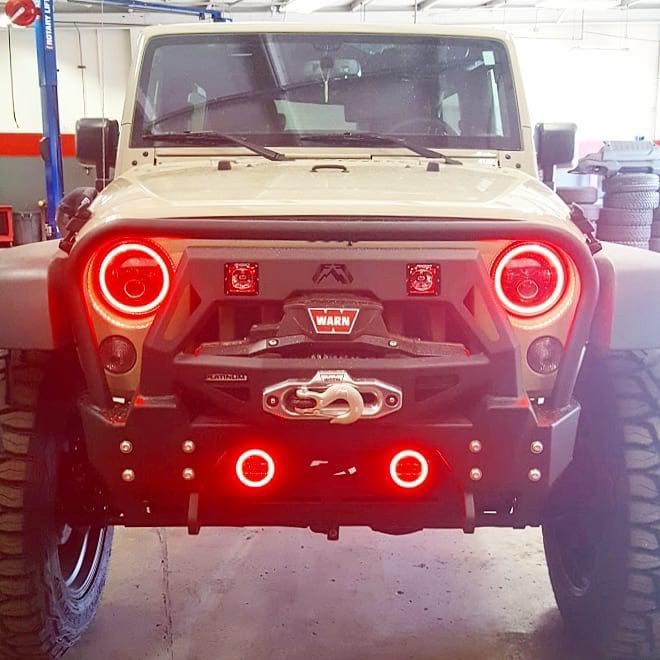

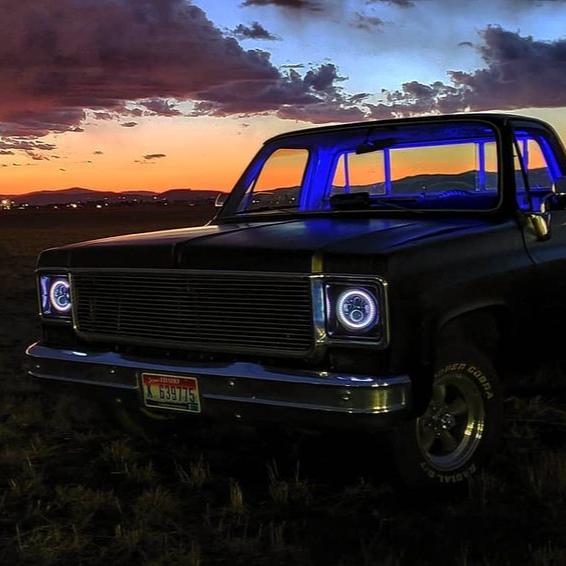

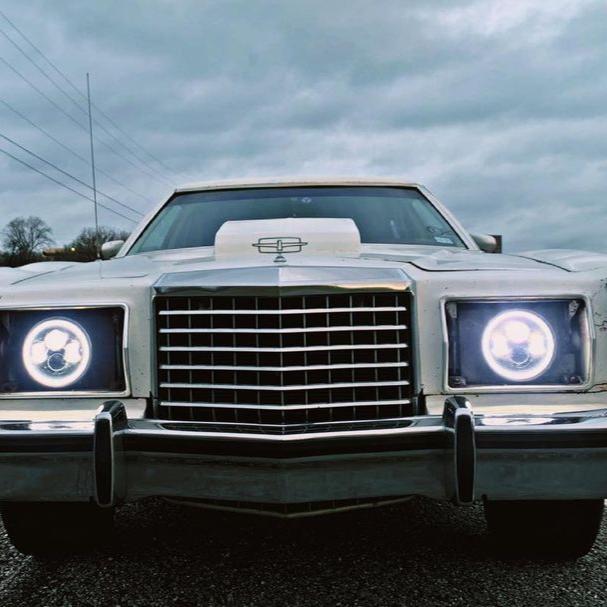

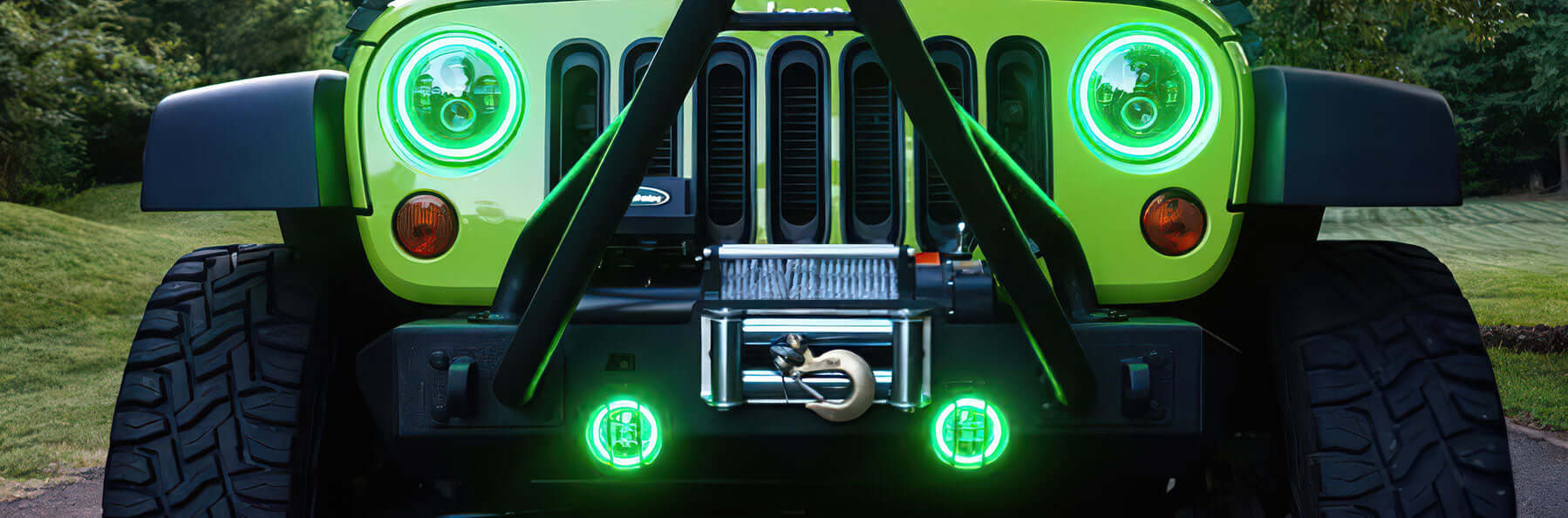

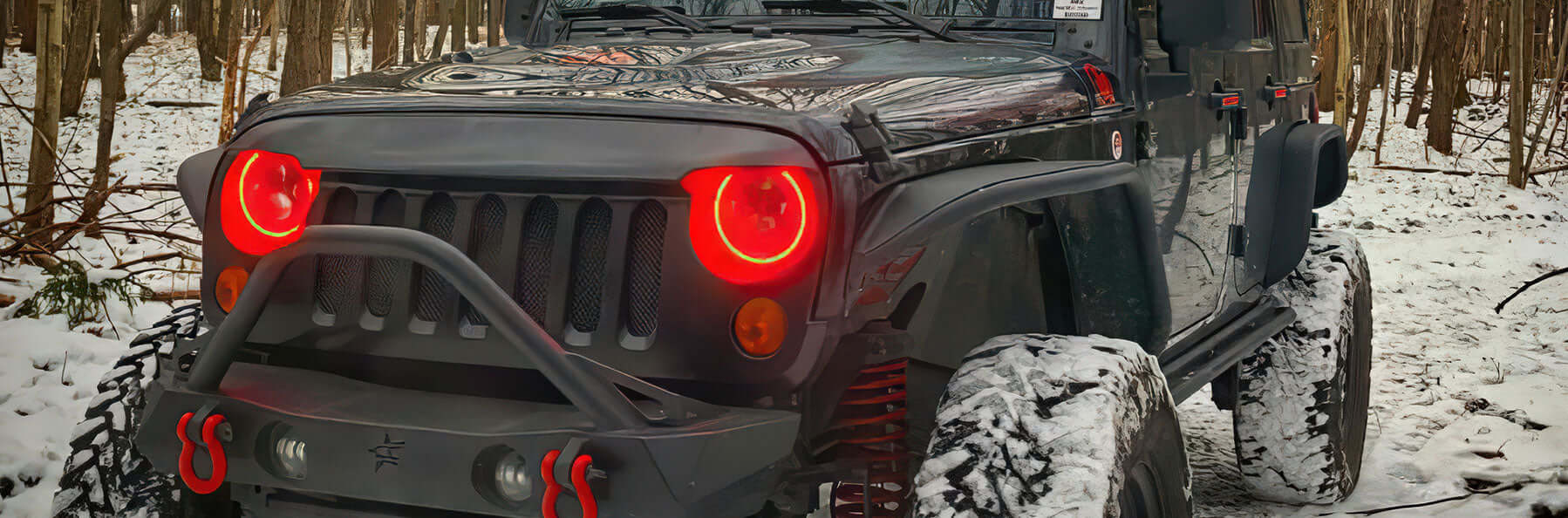

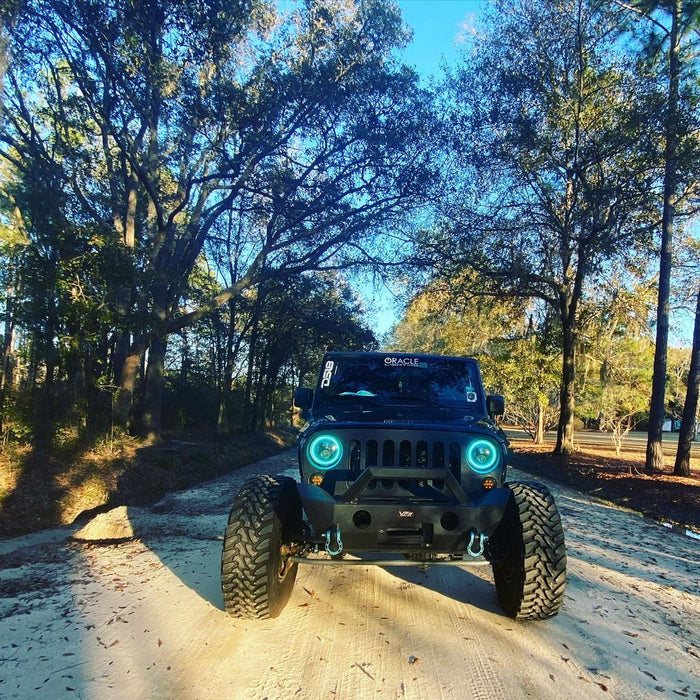

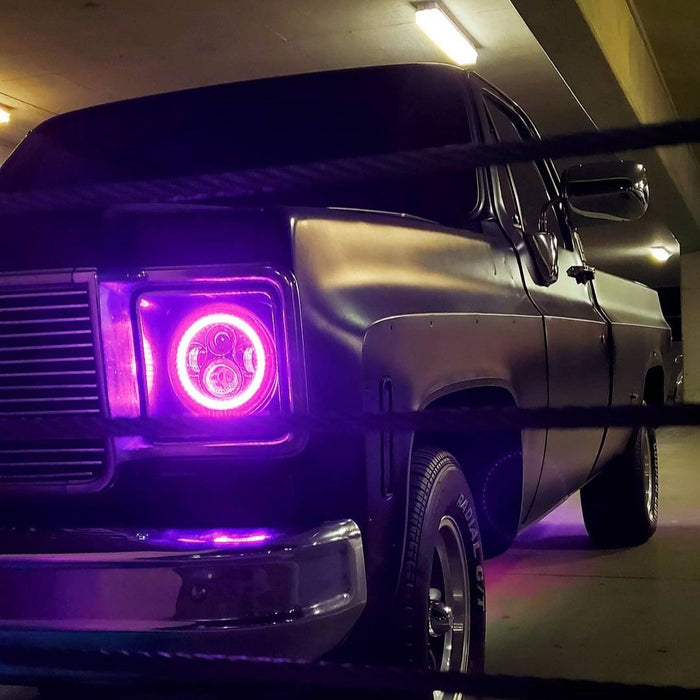

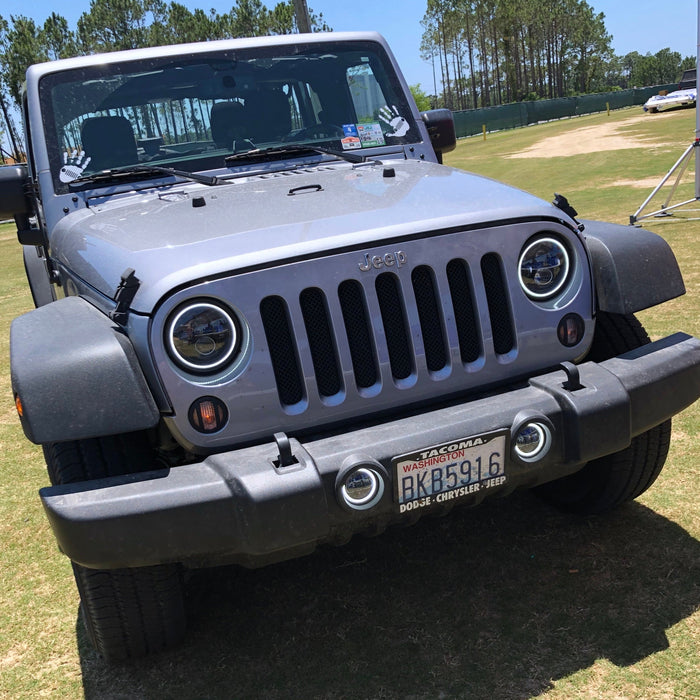

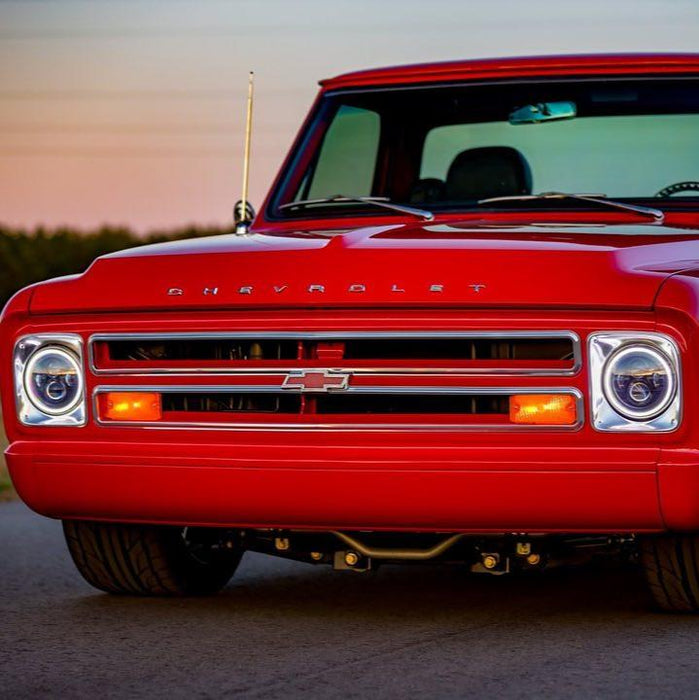

  • The Ultimate LED replacement headlight option for any vehicle with 7” Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 “Plug and Play” connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization!

    Latest Product Improvements

    • Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.

    • NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.

    • Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.

    • Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.

    • Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.

    •     LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

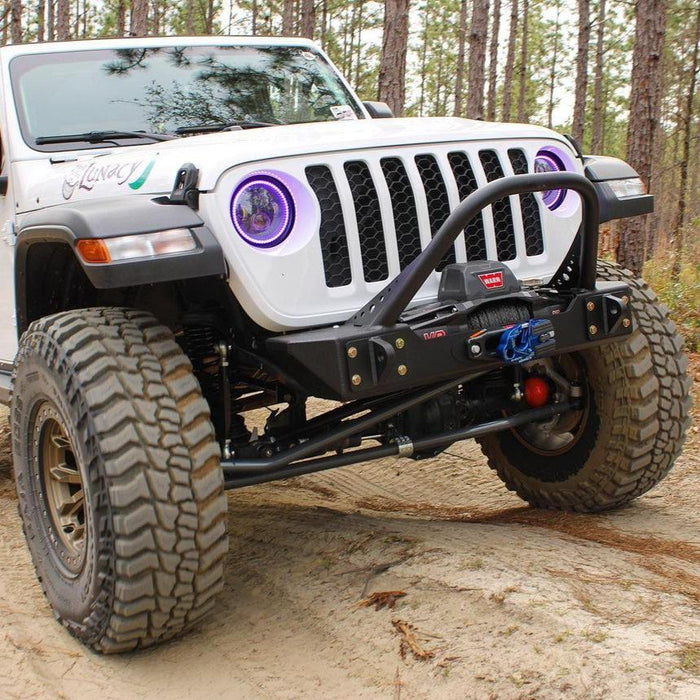

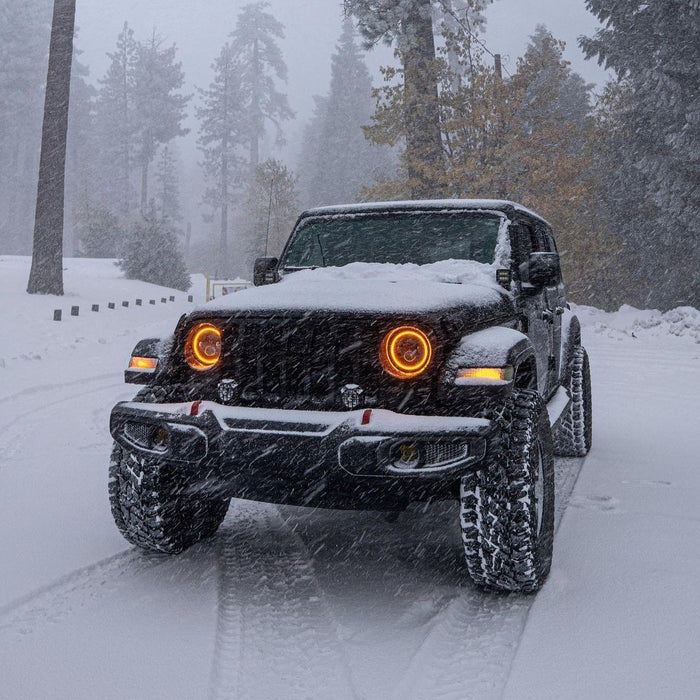

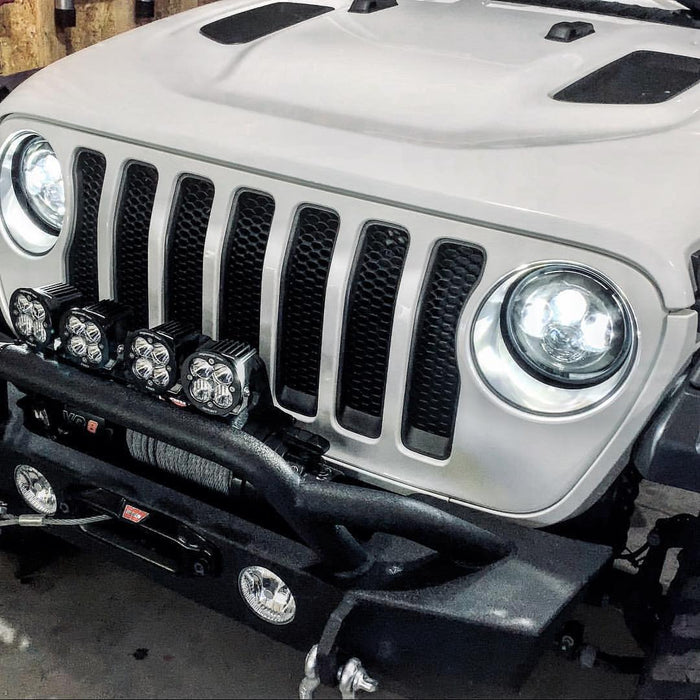

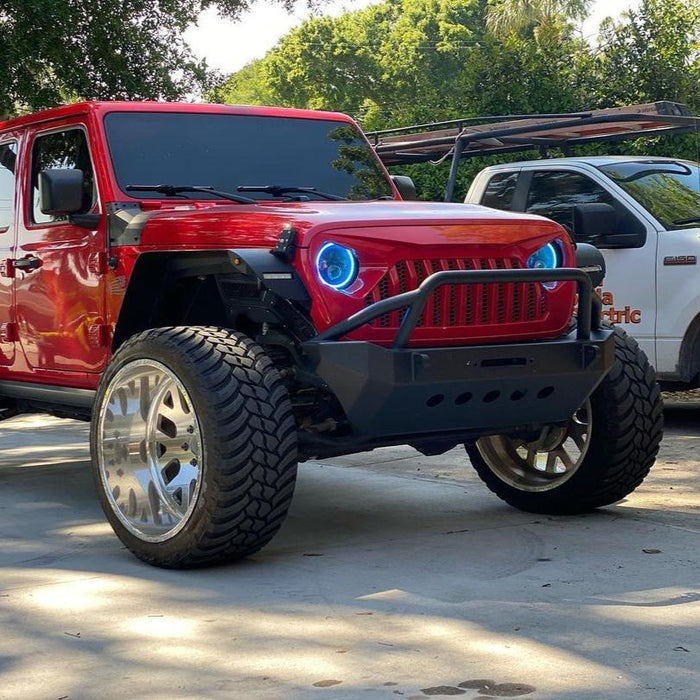

  • To fit these Lights to a JL  Wrangler or JT Gladiator you will need ORACLE Part# 5843-504 and ORACLE Part# 5844-504

    Product Features: (Per Light)
    - Low Beam Wattage: 30W Normal/36W Max
    - Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
    - High Beam Wattage: 40W Normal/48W Max
    - High Beam Lumens: 3600 Lumens/4800 Raw Lumens
    - Color Temperature: 6000K (Cool White Color)
    - Input Voltage of Light: 12-24V DC
    - Input Voltage of Halo (If Included): 12V DC
    - Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
    - Optional: ORACLE Halo Rings Pre-Installed
    - Premium Performance Phillips Luxeon ZES LEDs
    - Die-Cast Housing with Corrosion Resistant Coating
    - Heavy Duty Solid State Electronics
    - Hard-coated Polycarbonate Lens
    - Wide Beam Pattern with Sharp Cut-Off Line
    - Easy Plug & Play Installation
    - DOT and SAE Certified
    - 2 year warranty

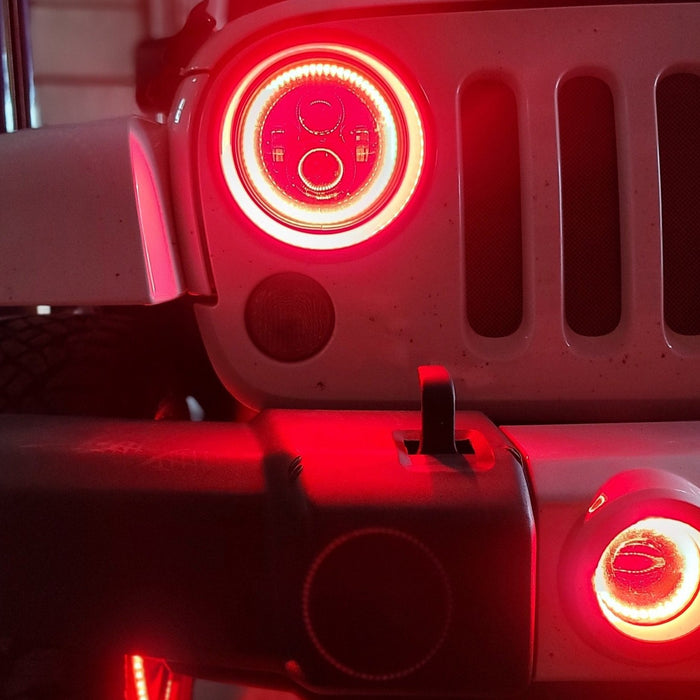

    We Recommend Matching Fog Lights ORACLE Part #5846

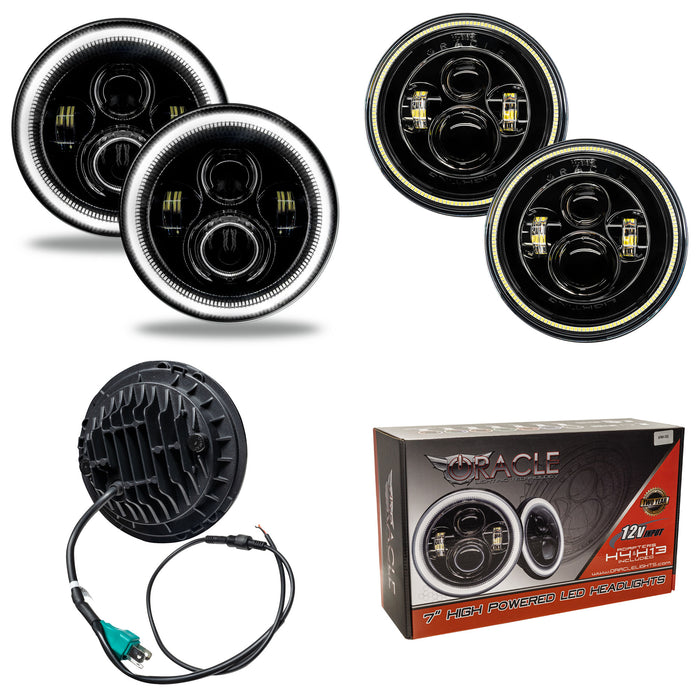

  • In the Box:

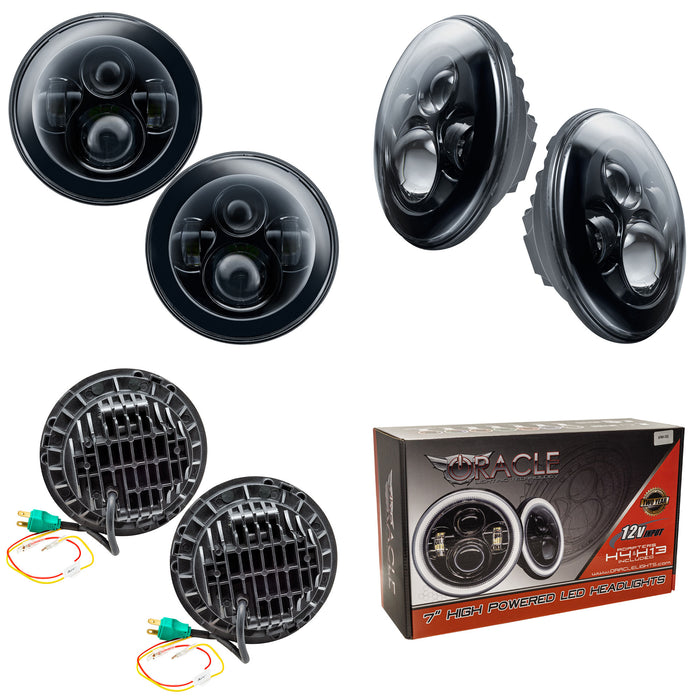

    - (2) ORACLE Lighting 7" High Powered LED Headlights with Black Bezel
    - H4/H13 Connectors








  • View FMVSS 108 Test Data

    Wiring for Halos:
    • Red Wire is (+) the positive wire
    • Black Wire is (-) the negative wire

    For Halo Colors White and Amber (Road Legal Colors) we recommend:
    • Connecting wires to the Parking Light Harness
    • Connecting wires to Ignition Power

    For other Single Colors (Non Road Legal Colors) we recommend:
    • Connecting Wires to a Toggle Switch view here
    • Connecting Wires to a Controller view here

    For ColorSHIFT® Halos:
    • Connect wires directly to the ColorSHIFT® Controller you purchased

  • ORACLE PART# COLOR/OPTION
    5769-504 NO HALO
    5769-001 White
    5769-003 Red

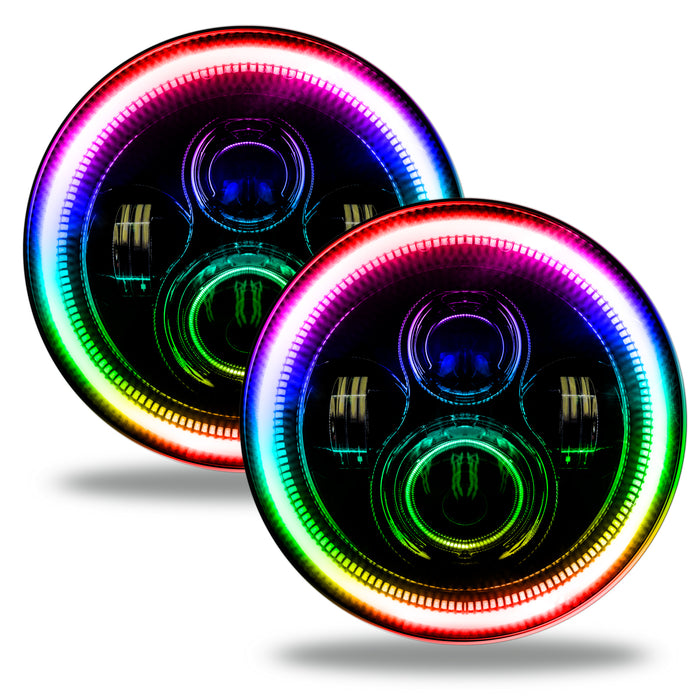

    5769-334 ColorSHIFT® - w/No Controller

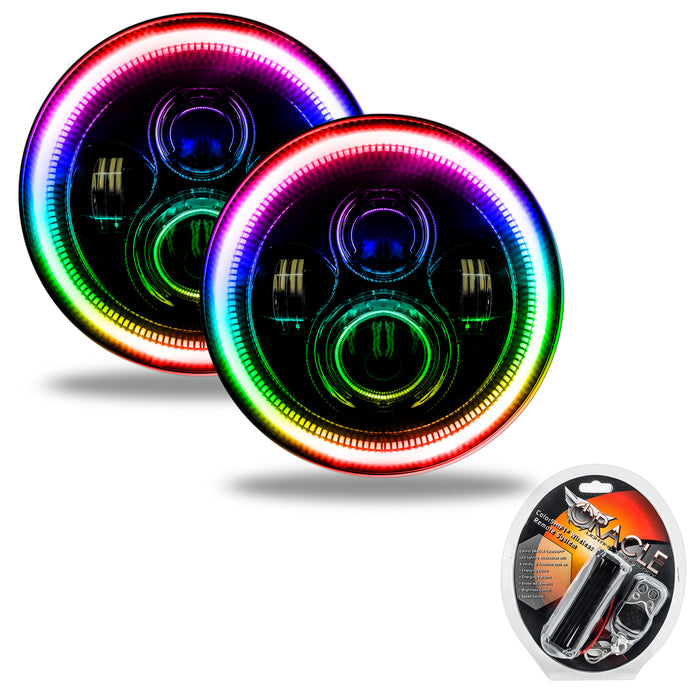

    5769-330 ColorSHIFT® - w/RF Controller

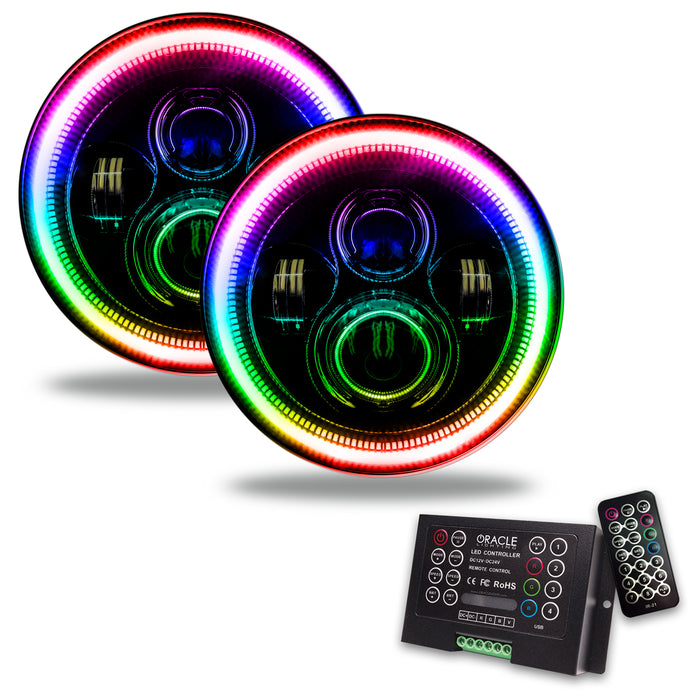

    5769-333 ColorSHIFT® - w/2.0 Controller

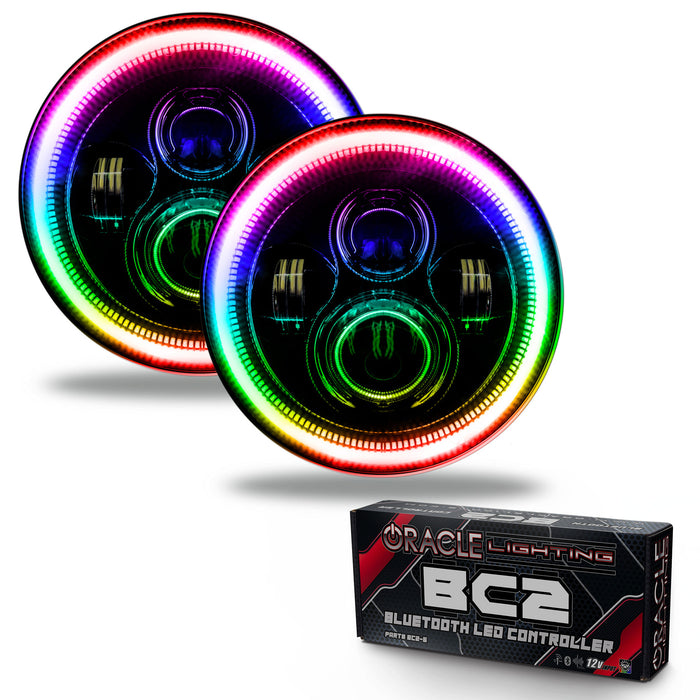

    5769-335 ColorSHIFT® - w/BC2 Controller

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Roger Kendall
Better lights then the "Quadratec Lights I installed 11- 12 years ago.

Was going to install these into my 22 Glad with "adapter brackets" but, those did not hold the light properly in place, so I sent the brackets back and installed these into my 2012 JK replacing the older Quadratec LED's. These fit perfectly inside the housing bezel of the 2012 Jeep and are much better light then the 12 year old Quadratec ones I had. They still worked though, so no complaints about those. See if these will last 12 years though!

Thank you for the honest review! I have passed along your critique of the brackets to the appropriate quality control personnel.

J
Jeff B.
PLUG-N-PLAY ALL DAY

Bought some new LED headlights! They REALLY are just plug-n-play easy to install! I will buy more some day!
