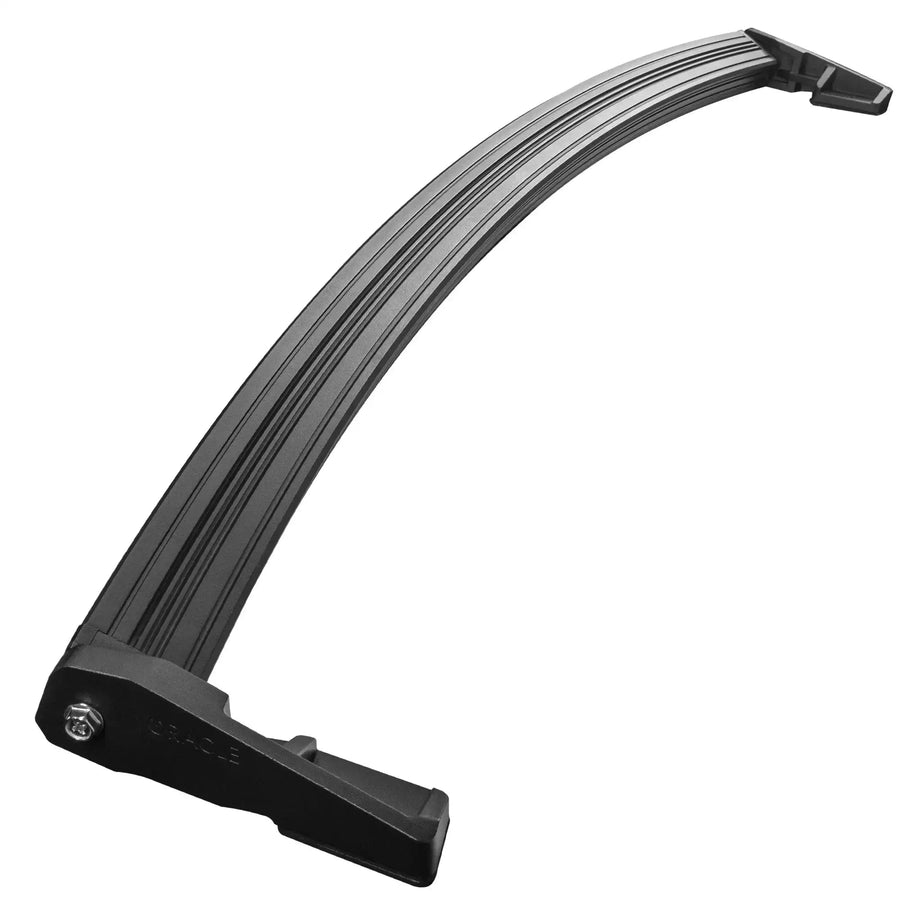

2022-2026 Hummer EV 50" Roof Mount Curved Light Bar w/ Brackets

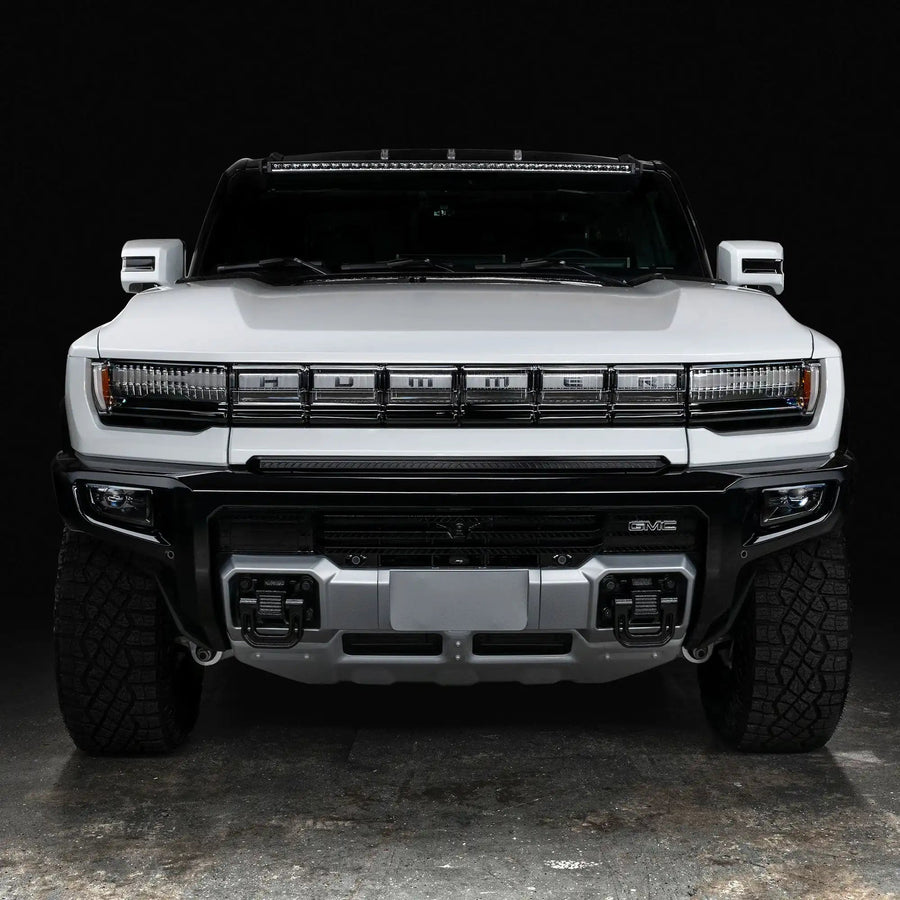

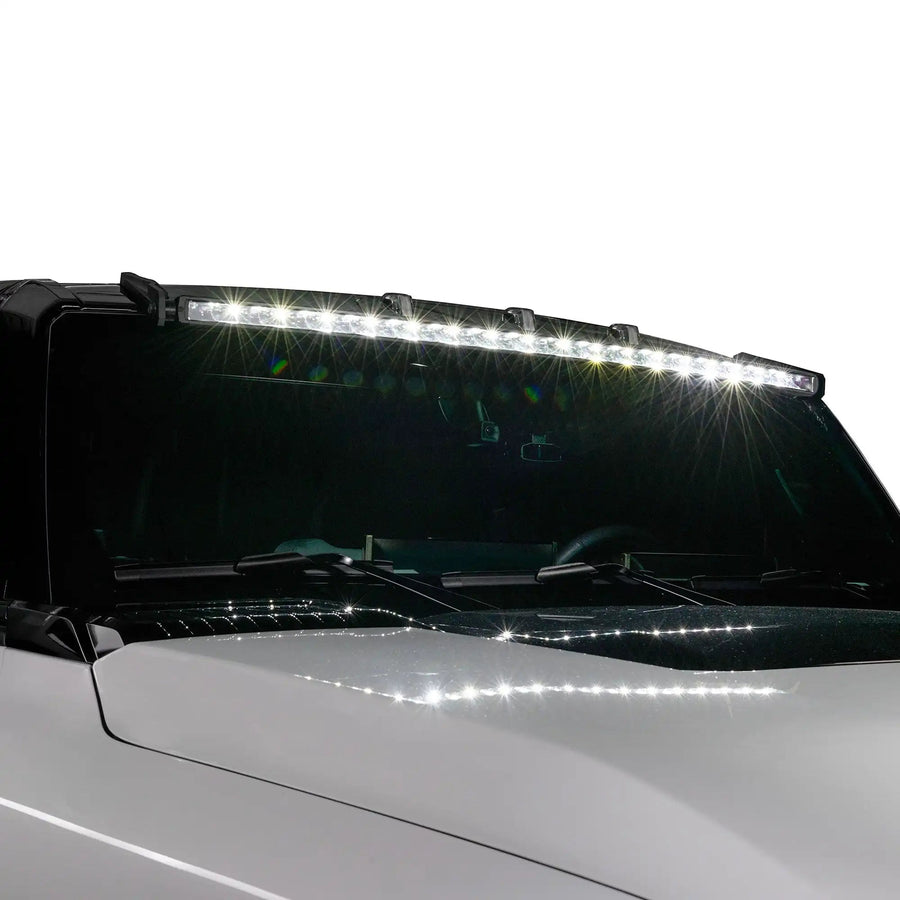

The ORACLE LED Light Bar for the Hummer EV features a unique low-profile design that helps reduce wind noise without blocking factory cab clearance lights. CAD-designed brackets are engineered specifically for this application for a straightforward, DIY-friendly installation.

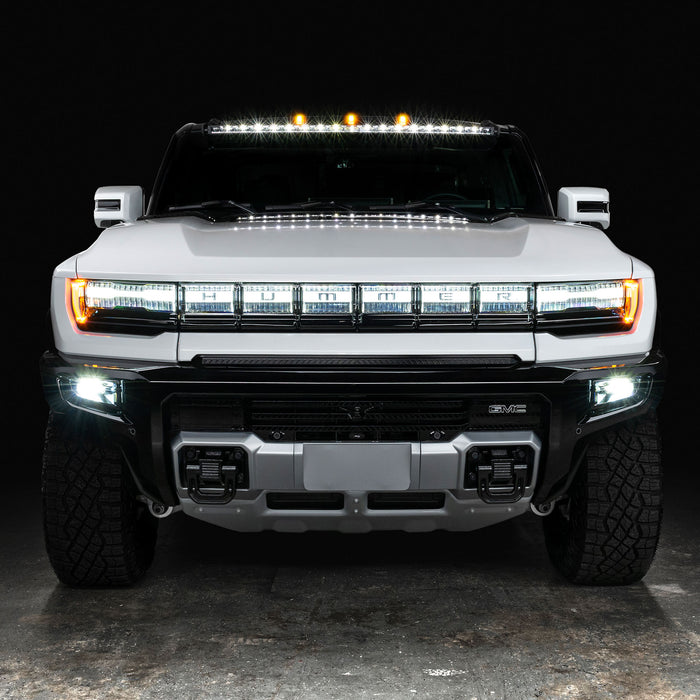

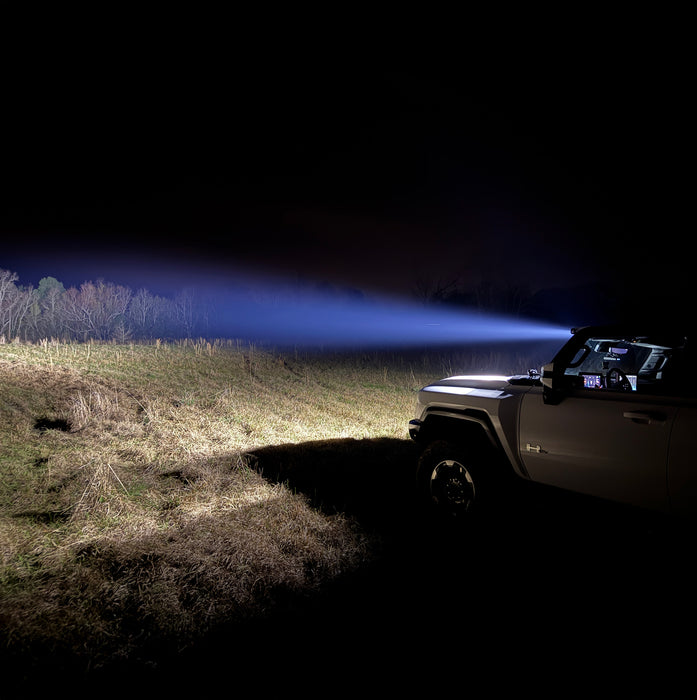

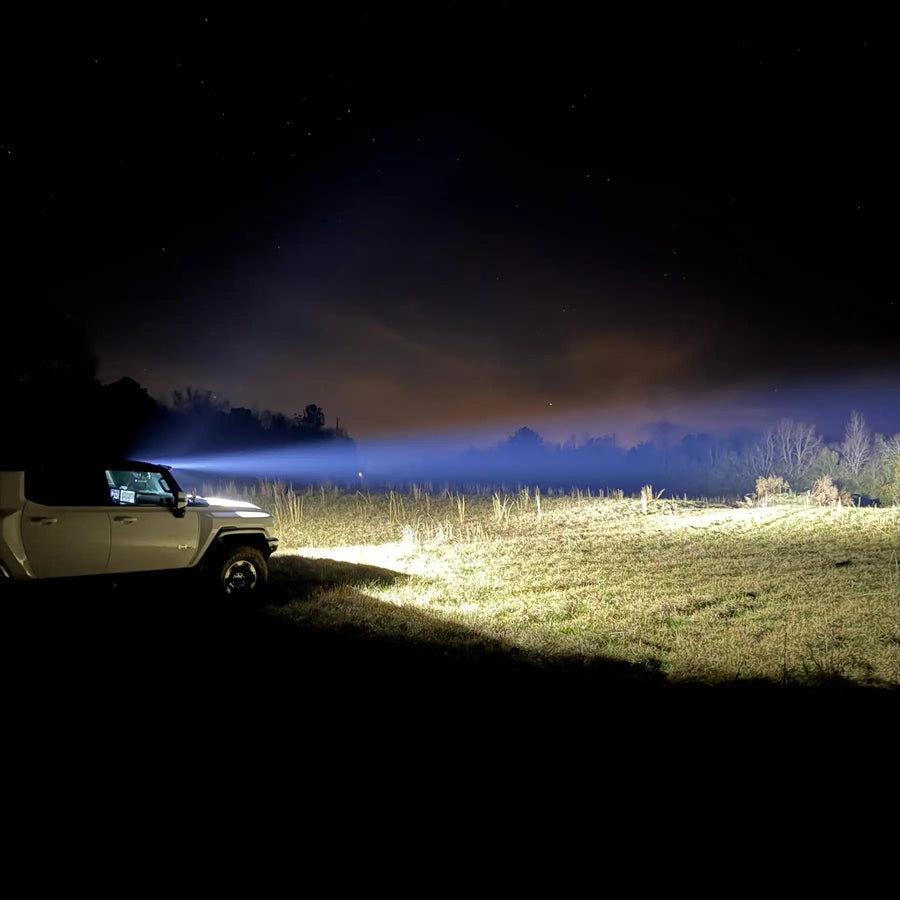

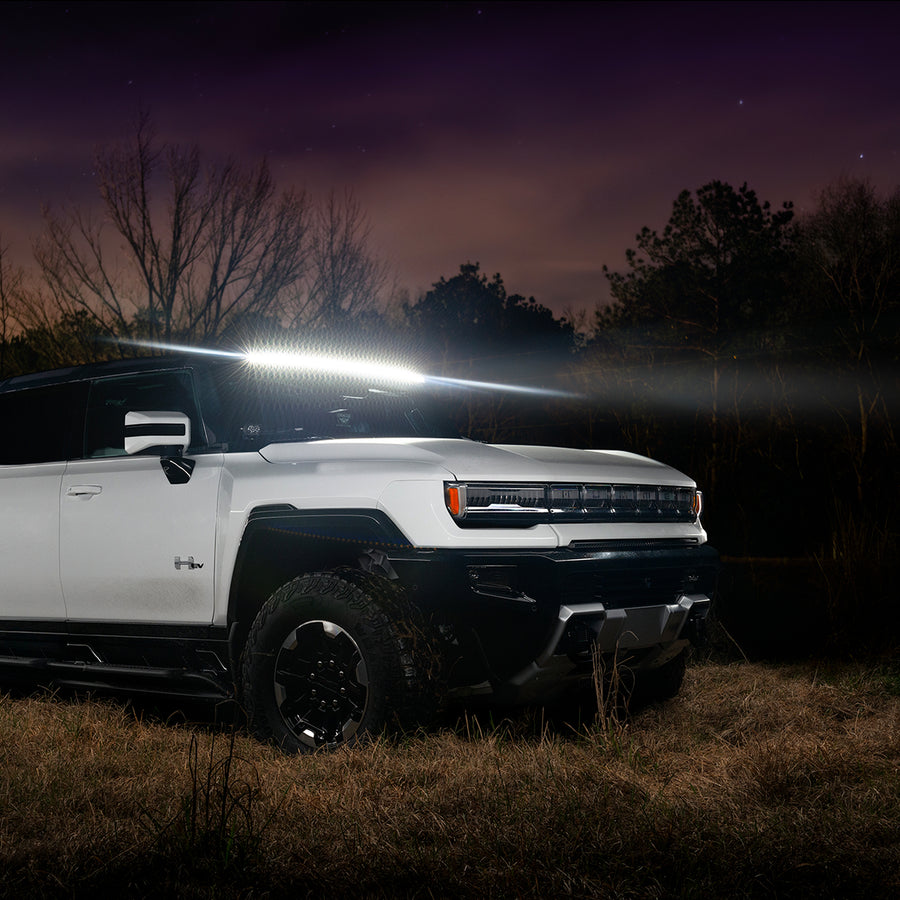

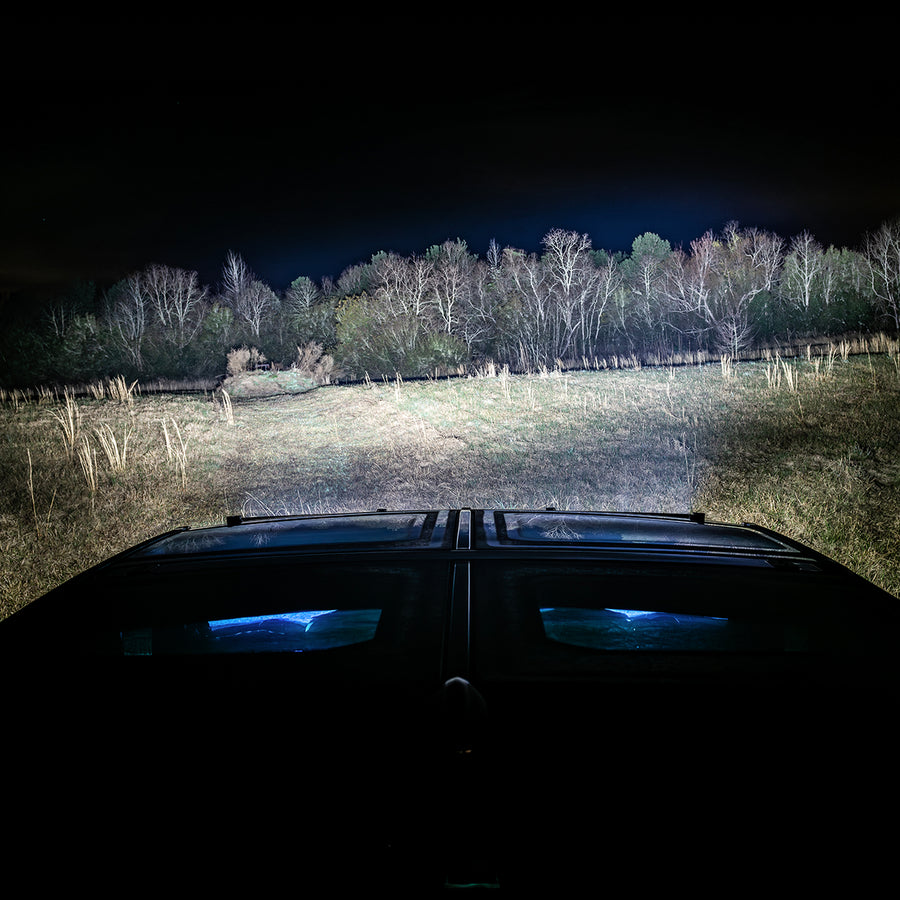

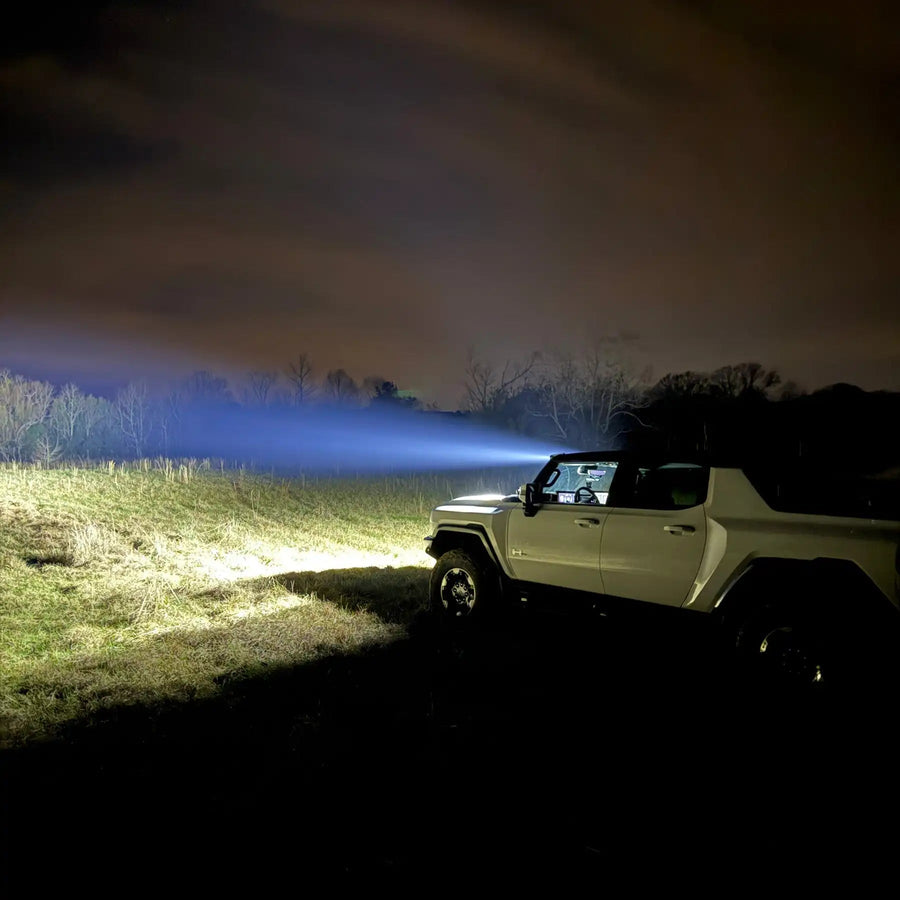

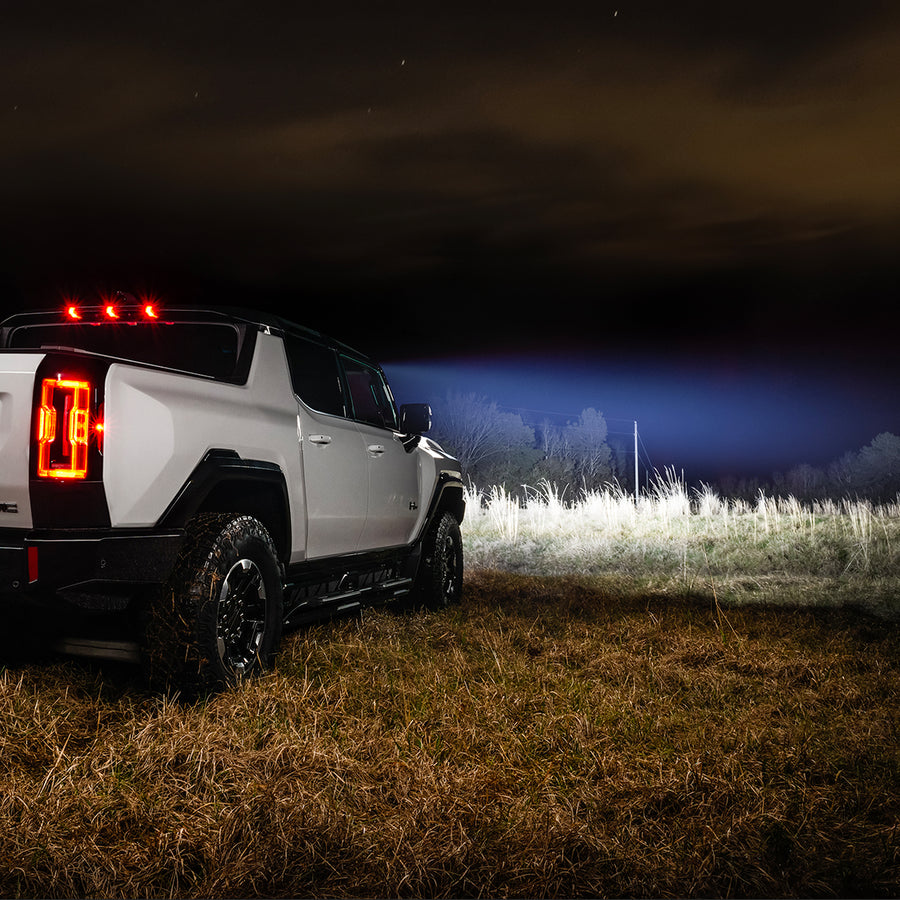

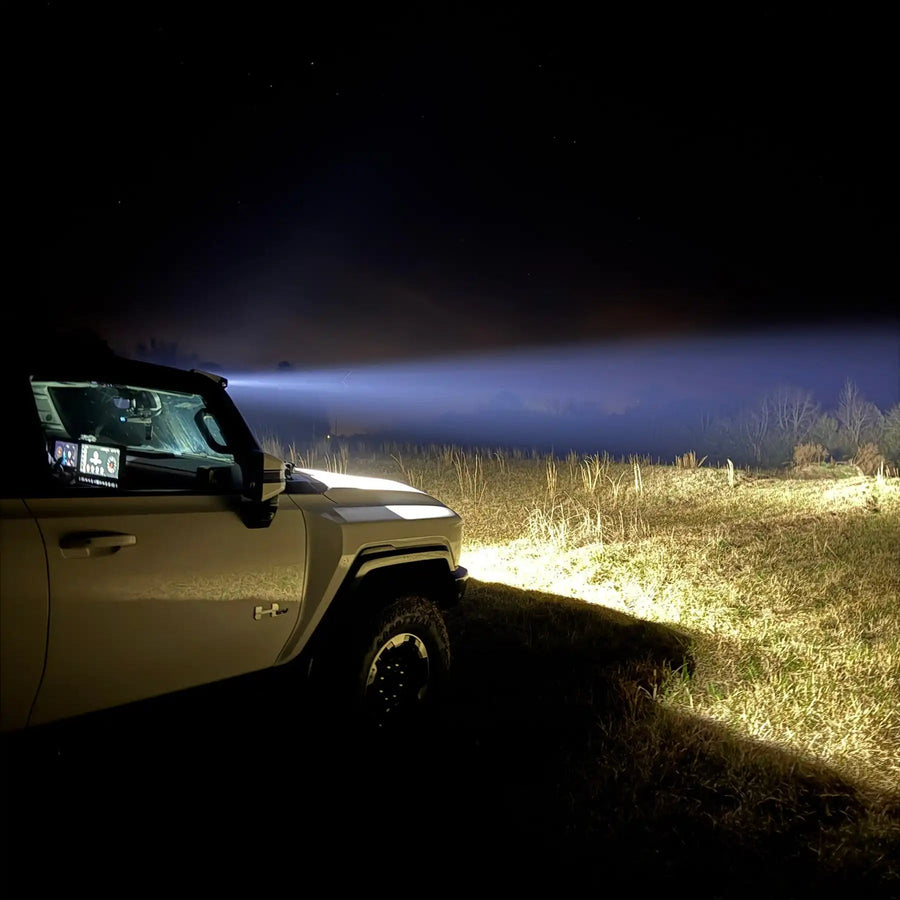

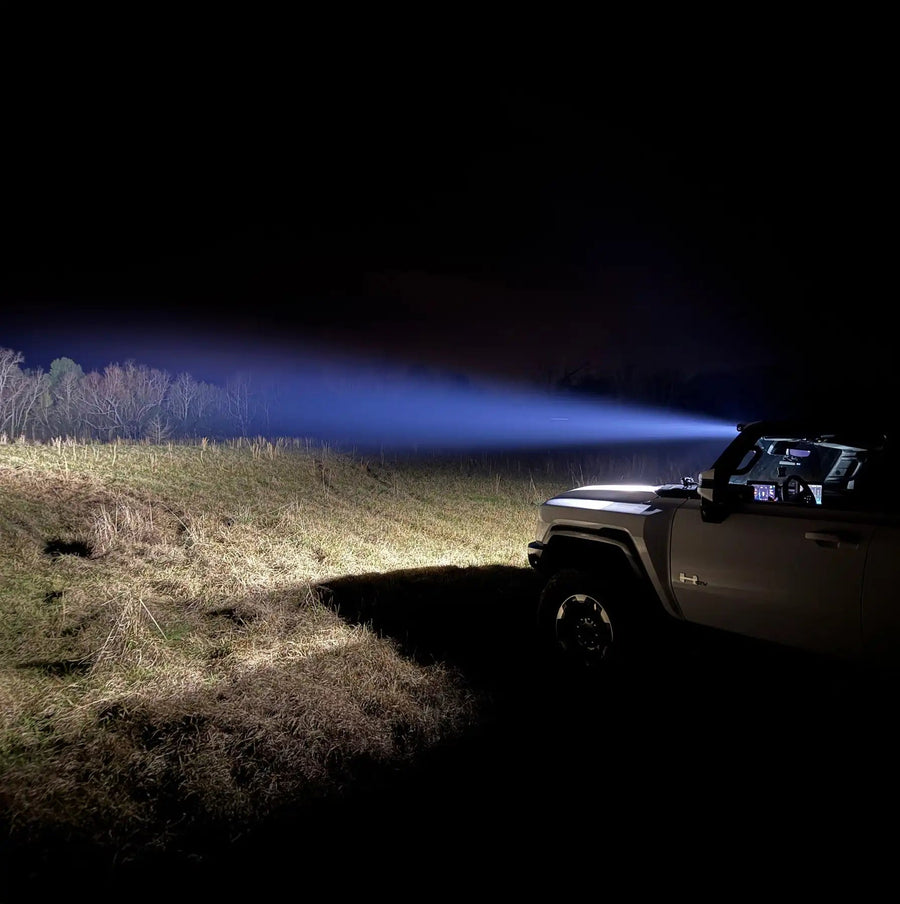

Designed to match the curvature of the Hummer windshield, this system combines application-specific fitment, clean styling, and up to 22,200 raw lumens of long-range output. When the trail ahead goes dark, the driving beam provides forward illumination without the bulky profile of a traditional roof-bar configuration.

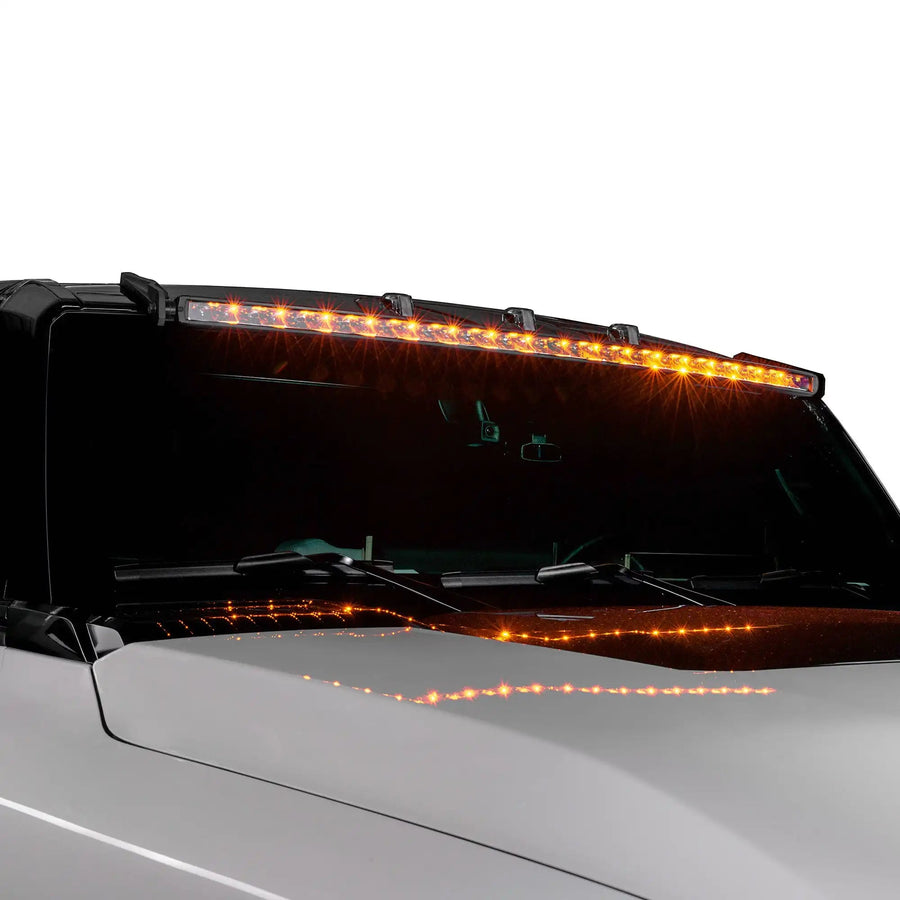

Selectable amber or white clearance lights can be wired to an Aux switch, parking lights, or the DRL circuit. Leave them disconnected if you do not want to use the clearance feature.

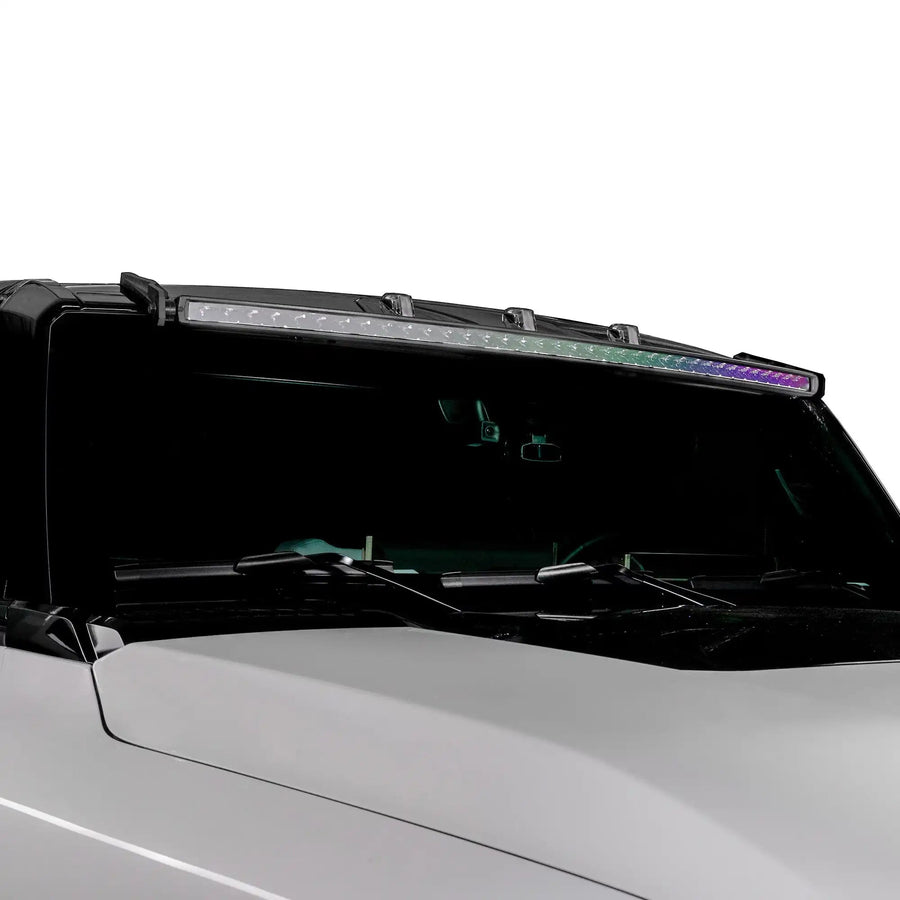

The low-profile installation is quieter and more aerodynamic than traditional roof-bar configurations and does not interfere with hardtop removal.

Important: Avoid high-powered car washes with overhead brushes, as with any roof-mounted light bar setup.

View the Hummer EV Roof Mounted LED Light Bar Render

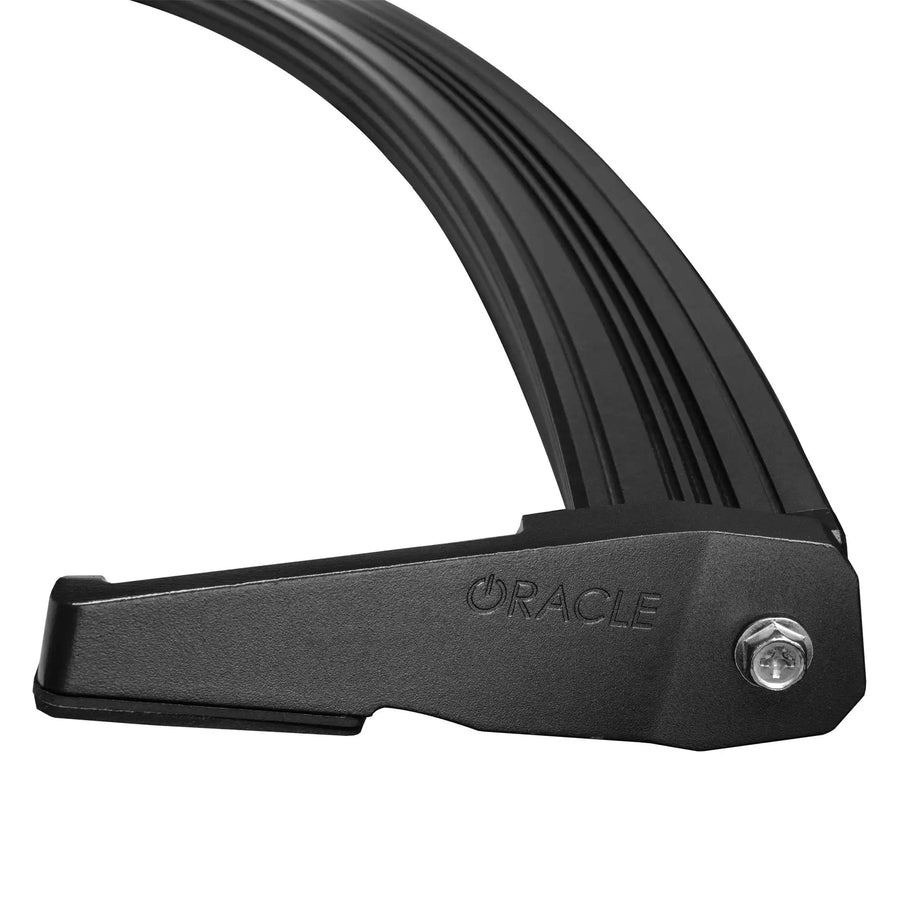

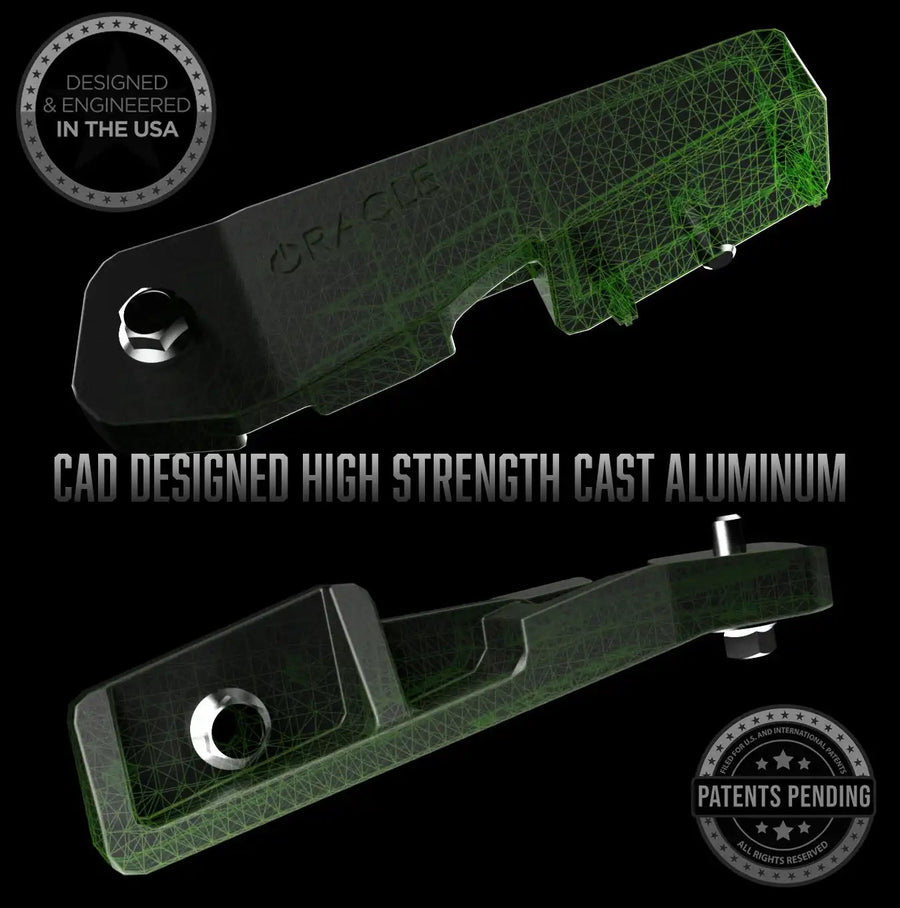

Bracket Specifications

• Material: Cast Aluminum
• Finish: Black Powder Coat
• Fitment: Hummer EV
• Base: Rubberized Base Gaskets

Performance (Driving Beam)

• Raw Lumens: 22,200 lm
• Effective Lumens: 18,800 lm
• Total Wattage: 252W
• Total Amp Draw: 16A @ 12V DC
• Beam Angle: 50° Driving Beam
• Max Projection: 1 Lux @ 460m
• Color Temperature: 5500K-6000K

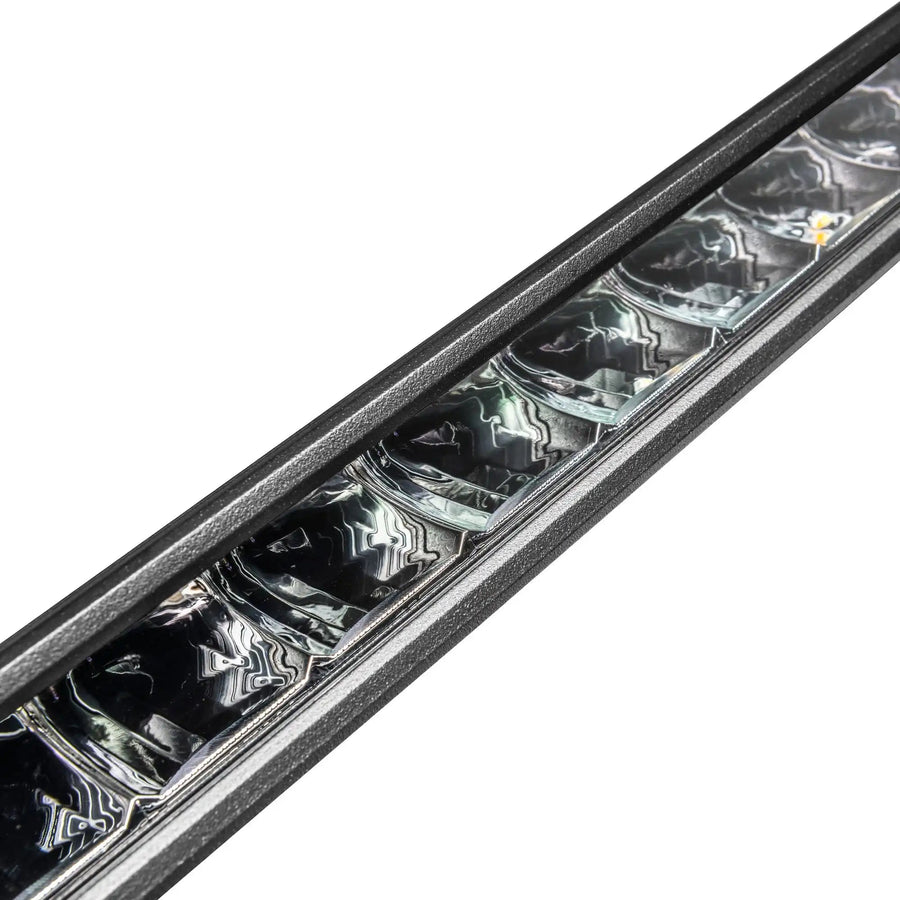

Optic Note: Reflector-facing technology is designed to optimize usable output and visibility from the individual high-power emitters.

Materials & Construction

• Outer Housing: Polycarbonate
• Lamp Housing: 6030 Aluminum
• Reflector: Plated Polycarbonate
• Lens: Lexan Polycarbonate
• Finish: Polyester Powder Coat
• Breathers: Stainless Steel Anti-Fog Breather Valves
• Connectors: Molded IP68 Waterproof Connectors
• Ingress Protection: IP69

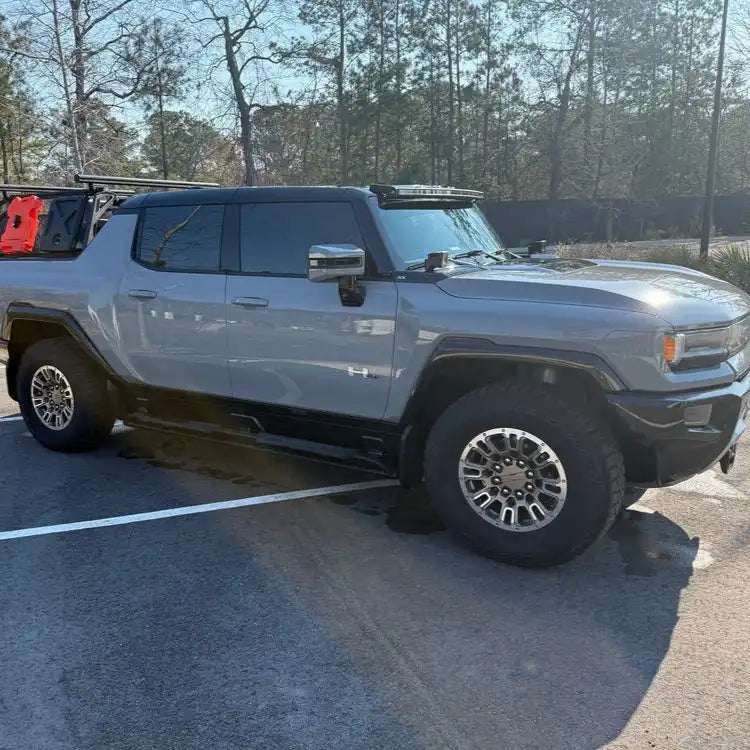

Fits: 2022-2026 Hummer EV. Designed around the windshield curvature and factory roof rack mounting positions. The installation video covers Hummer EV SUV/SUT applications.

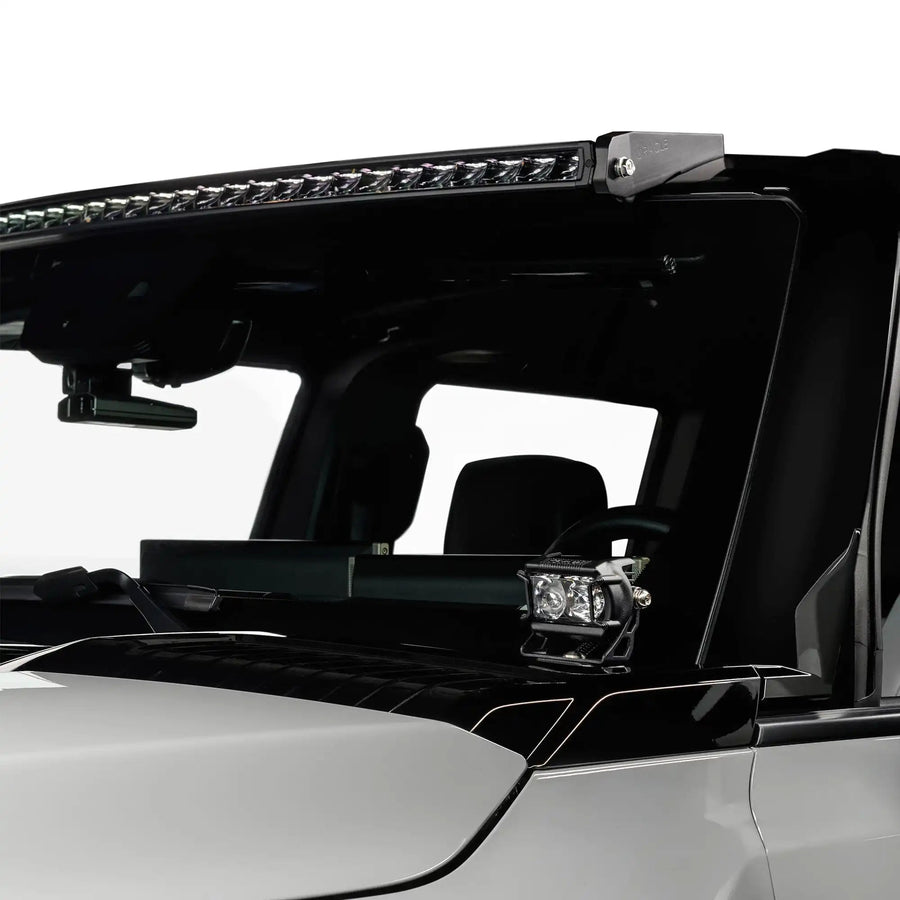

The low-profile brackets do not block factory cab clearance lights and the setup does not interfere with hardtop removal.

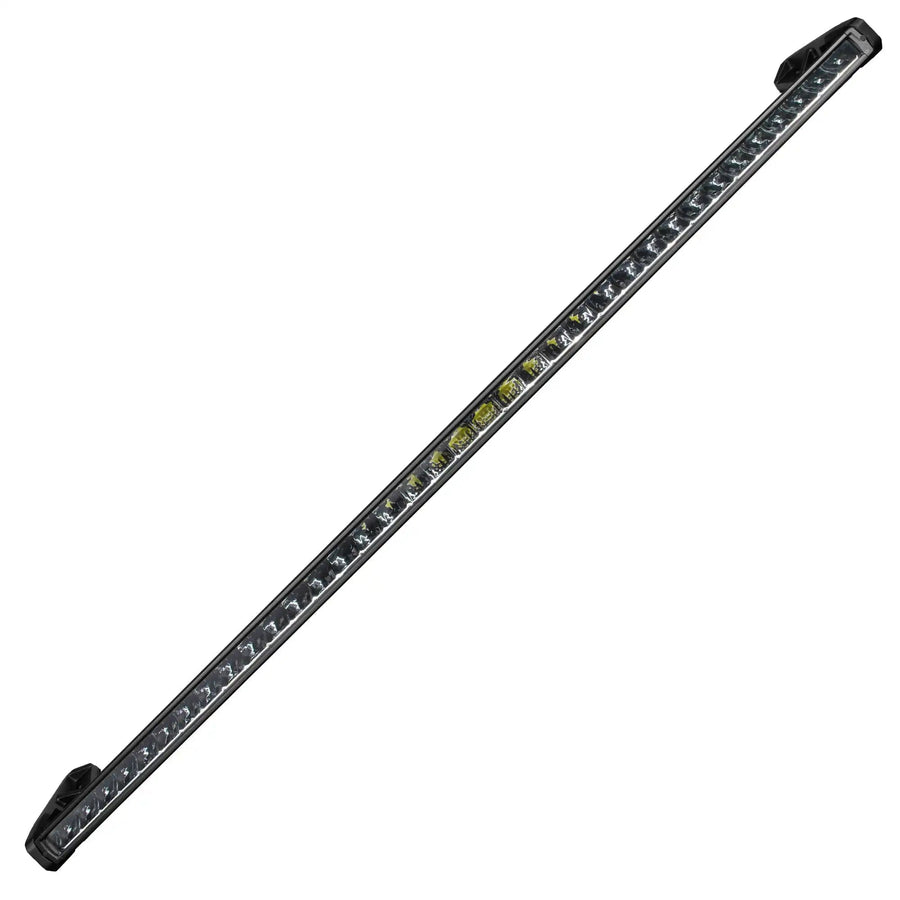

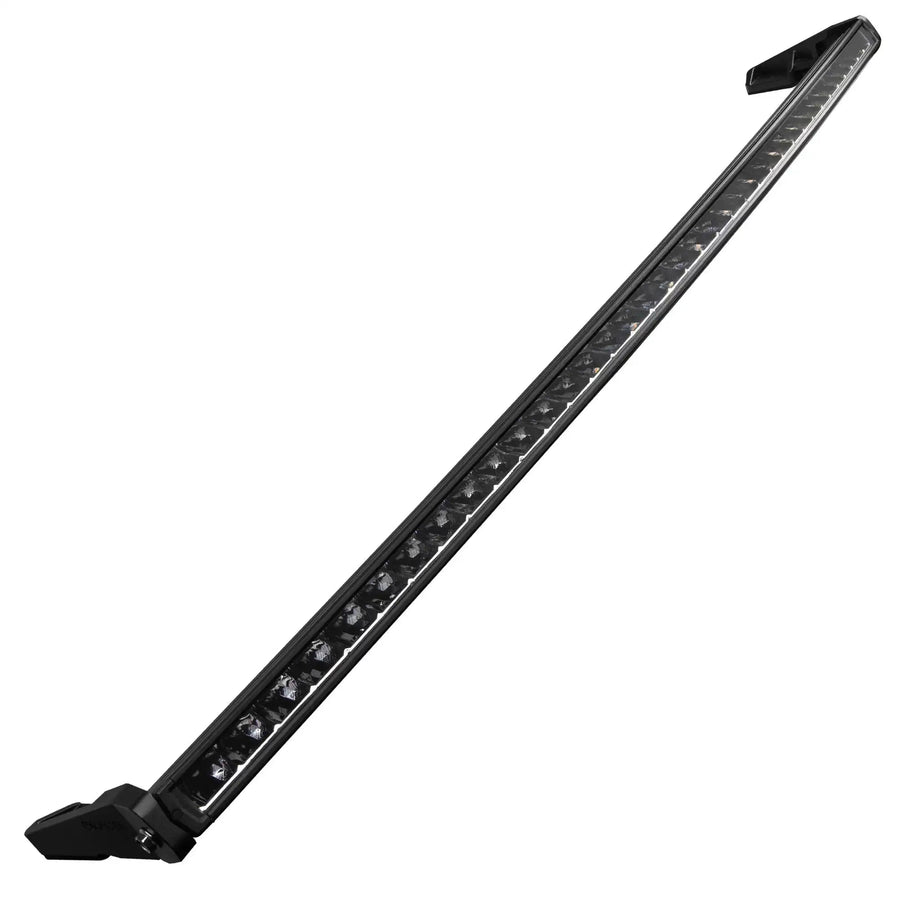

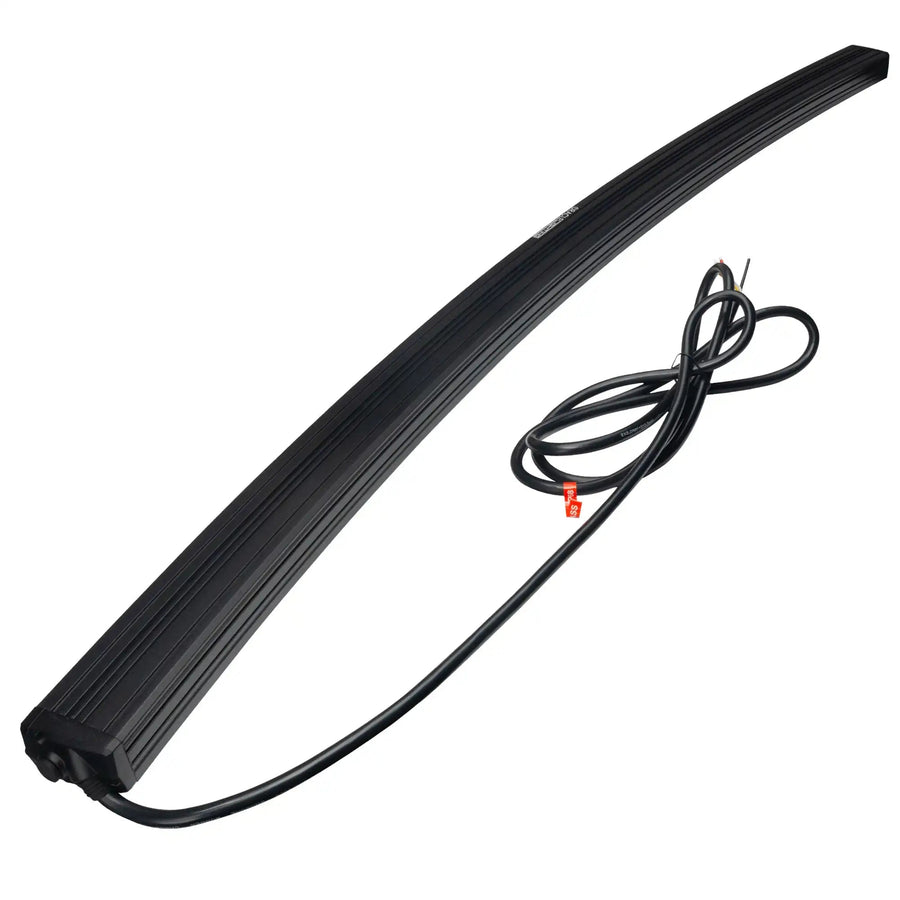

• (1) 2022-2026 Hummer EV 50" Roof Mount Curved Light Bar

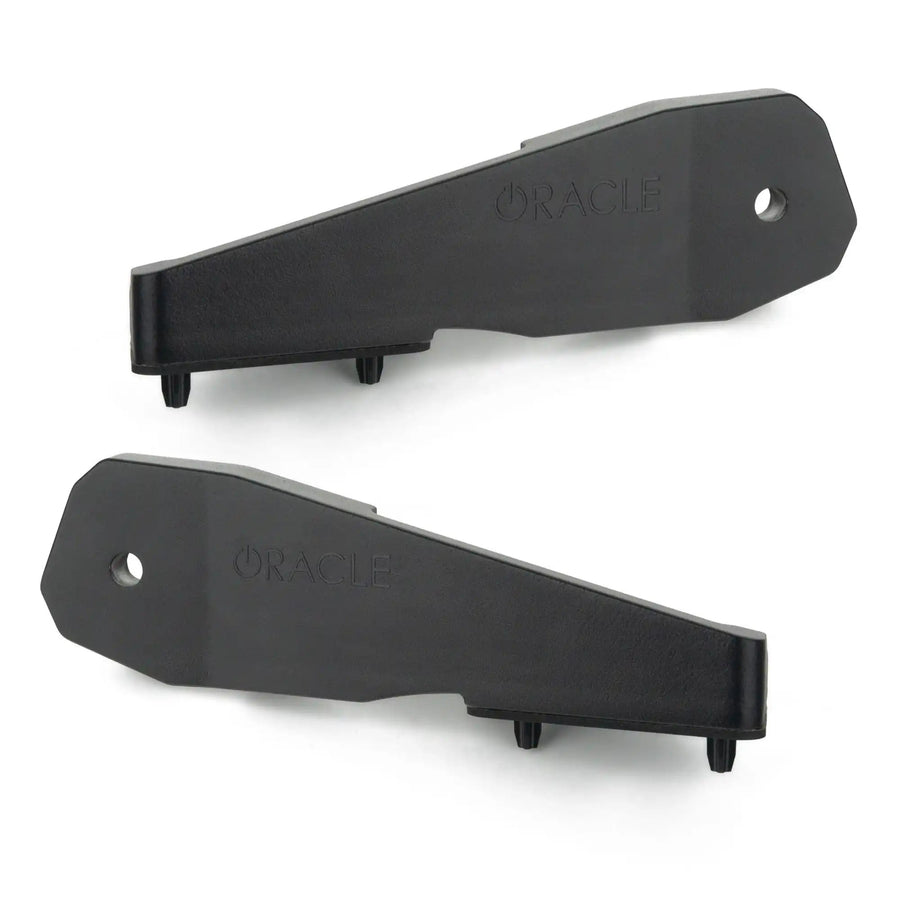

• (2) Mounting Brackets

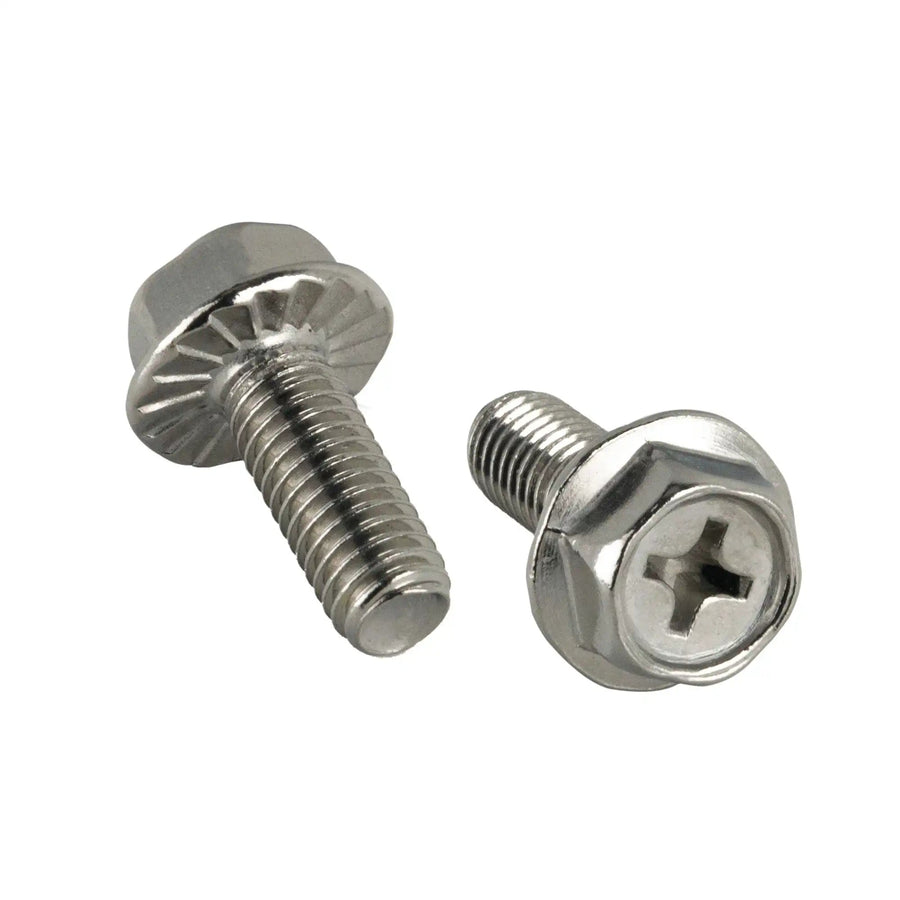

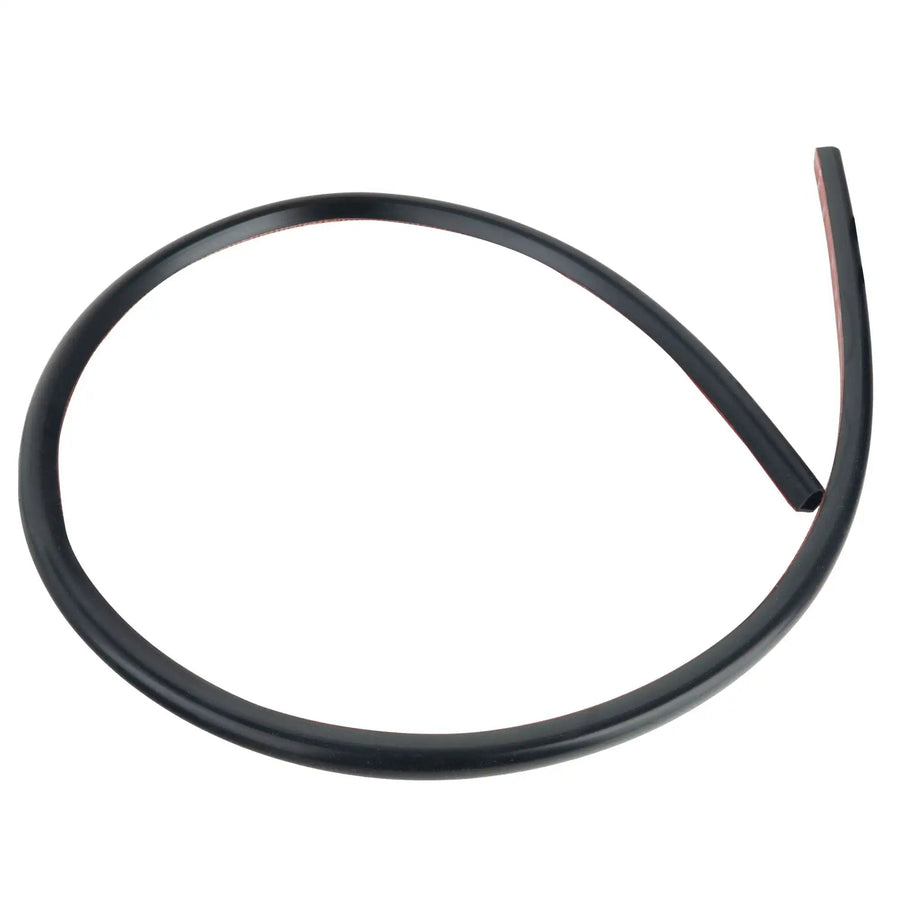

• Mounting Hardware & Weather Gasket

Includes mounting hardware and mounts to factory roof rack mounting positions.

Download Install Guide

Main Light Wiring

Connect to factory Aux switches. Extending the 16AWG cables may be required. If your Hummer EV does not have factory Aux switches, the recommended wiring and control options are:

Roof Light Bar Switched Harness - ORACLE Part #5897-504

TRIGGER 4 PLUS Controller - ORACLE Part #2100

TRIGGER 6 SHOOTER Controller - ORACLE Part #3001

Clearance Light Wiring

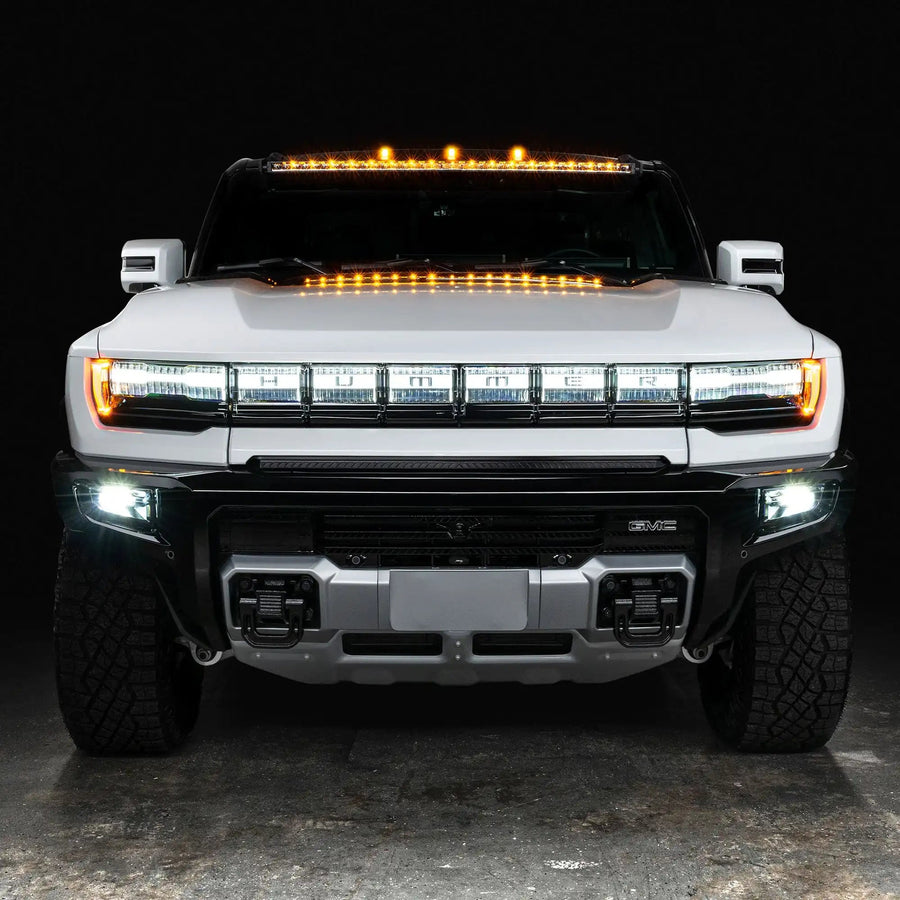

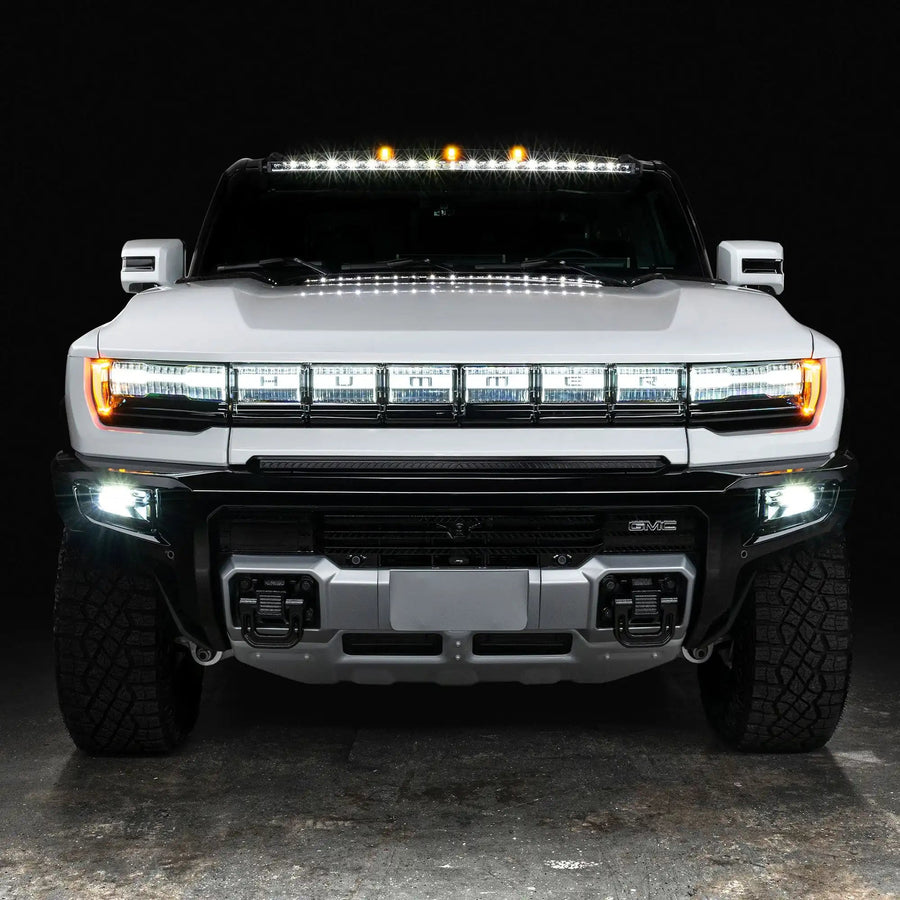

Selectable amber or white clearance lights can connect to an Aux switch, parking lights, or DRL circuit, or remain disconnected if not required.

Installation Time is approximately 1 Hour. Experience level: Advanced. Moderate mechanical or electrical work may be required.

Care Warning: Avoid high-powered car washes with overhead brushes.
