ORACLE Lighting VEGA™ Series LED Light Pod Spotlights (PAIR)
- Product Description
- Features
- What's Included
- Installation
- Detailed Specifications
-

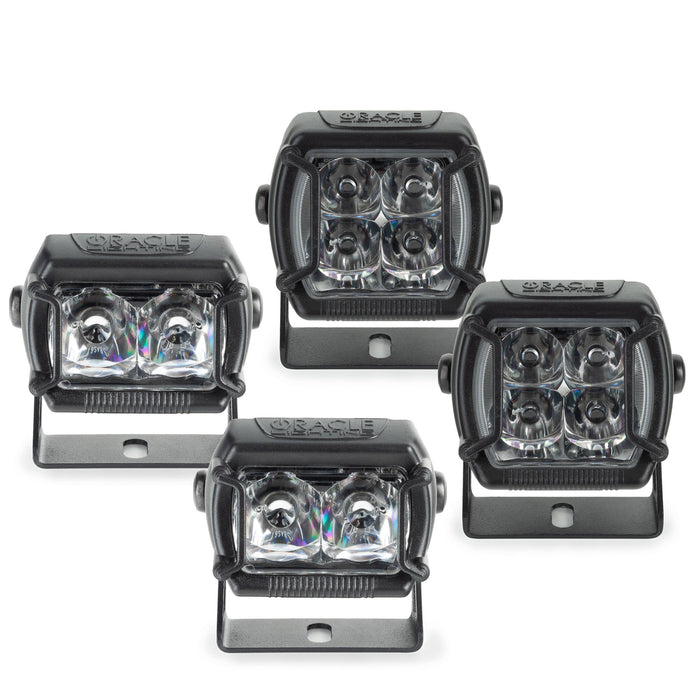

ORACLE Part Numbers:
5921-2-001 - VEGA 20W Series 2
5921-4-001 - VEGA 40W Series 4Our Goal: The objective of the Vega compact off-road LED series is to provide users with an unparalleled lighting experience. Utilizing high-quality LED lighting components, such as OSRAM LED chips, the Vega series offers intense output performance while also providing a high level of overall durability and performance. We are happy to provide MORE light output at a price point that is LOWER than many comparable products on the market.

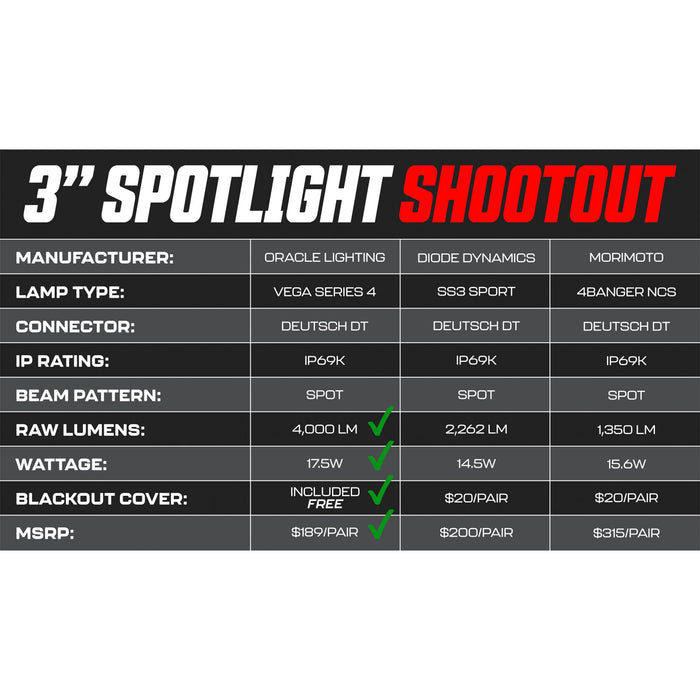

Performance: Using only high-quality components in a package designed from scratch to provide unparalleled performance, value, and durability. The IP69K ingress-protection and OE level Deutsch DT connectors increase the overall reliability while OSRAM LED Chips kick out high lumen illumination. CAE analysis allowed refinement of both the optimization of the lens optics as well as the thermal dynamics to create a product which is both powerful and reliable. These factors combined provide users with a higher-level intensity than any other 3” light on the market at this price level.
Origins: The star Vega, is an important celestial object for astronomers and navigators alike. Vega is the brightest star in the northern constellation and is approximately 40 times brighter than the Earth’s sun. Vega has functioned as the baseline for calibrating the photometric brightness scale and was one of the stars used to define the zero point for the UBV photometric system. Vega has been extensively studied by astronomers, leading it to be termed. "Arguably the next most important star in the sky after the Sun". Overall, the study and observation of Vega has helped to advance our understanding of the universe and our place within it.
-
VEGA 20W Series 2 Features:
- Intense 2,000 Raw Lumen light output

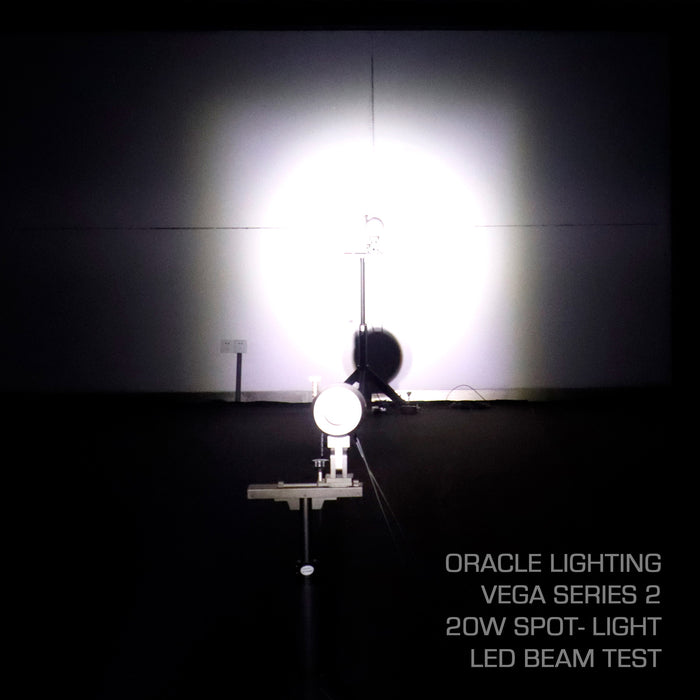

- Focused Spot-Light with almost 1000’ projection
- Unique and Versatile Patent-Pending Design
- Designed and Engineered in the USA
- Powdercoated aluminum construction

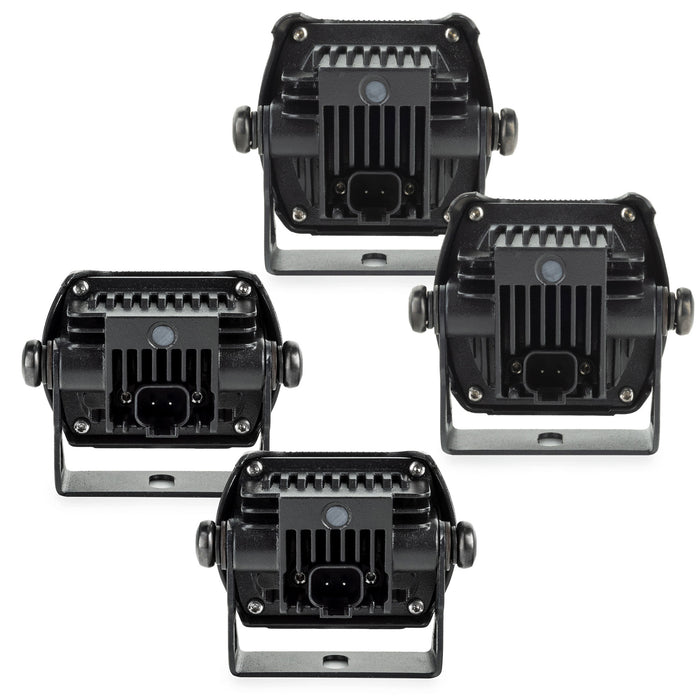

- Integrated Deutsch DT Plug and 2’ Whip
- 5 Year Replacement WarrantyVEGA 40W Series 4 Features:
- Intense 4,000 Raw Lumen light output
- Focused Spot-Light with over 1000’ projection
- Unique and Versatile Patent-Pending Design
- Designed and Engineered in the USA
- Powdercoated aluminum construction
- Integrated Deutsch DT Plug and 2’ Whip
- 5 Year Replacement Warranty

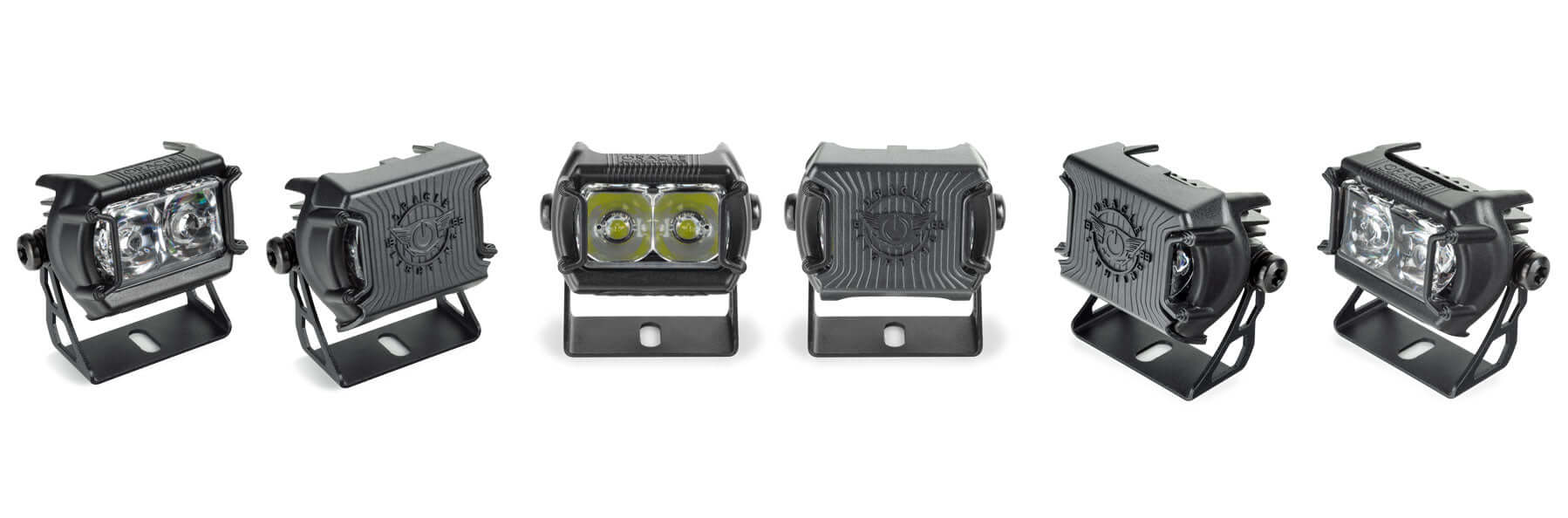

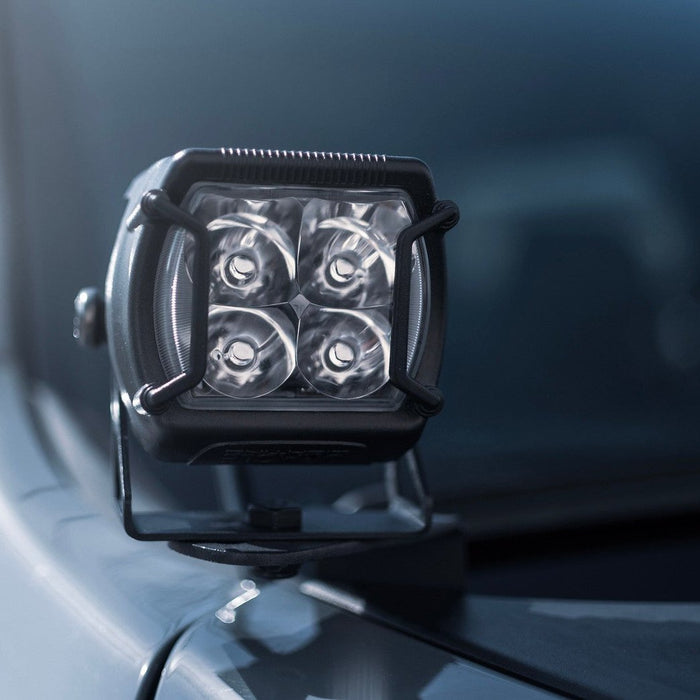

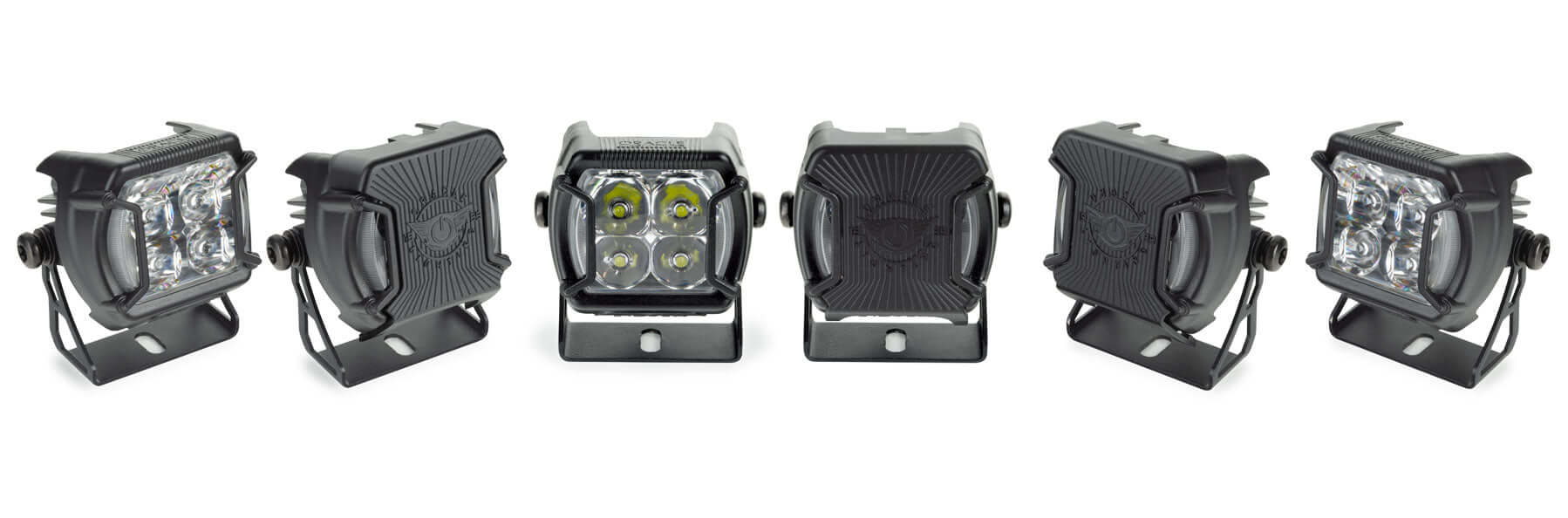

Versatility: Styled with an angled front lens, the Vega’s Patent-Pending design more closely reflects the OEM surfaces in many popular mounting positions. These lights feature horizontally symmetrical beam patterns so the lights can be mounted upside down or right side up without changing the beam angle. The result is a more versatile and compact product with thoughtful styling and a dynamic appearance.Accessories: Commitment Issues? Great news! Vega’s optional interchangeable lens covers can be added or removed without tools to easily change the color of the light output to Yellow or Amber. These covers simply snap on over the existing clear lens to provide color-enhanced light output optimized for fog or snow conditions where glare can be an issue. In addition to these colored lens covers a black-out cover is included with each Vega light for any customers who have additional lamp compliance regulations in their State.

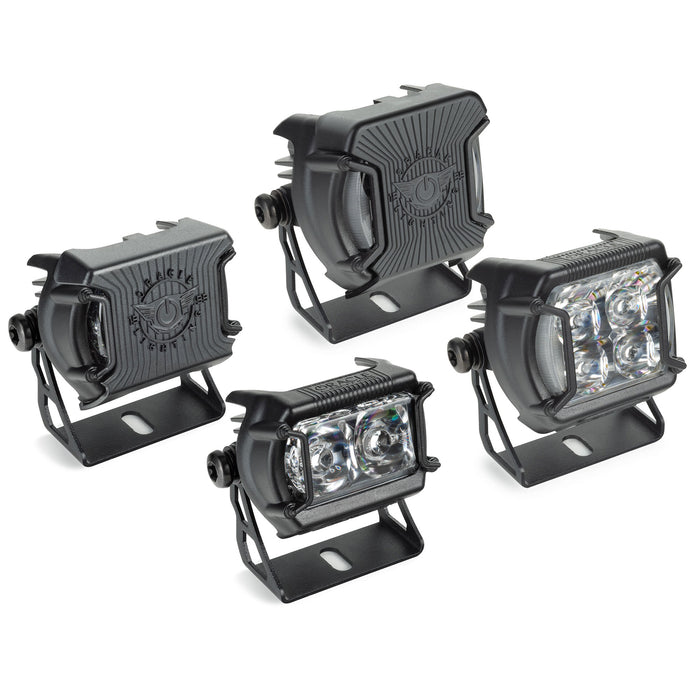

Regulatory Compliance: Some states require that Auxiliary lights have an opaque cover installed when mounted above the hood line of the vehicle. Each Vega light includes a standard black-out cover for any customers who have additional lamp compliance regulations in their State. These injection-molded covers feature an embossed ORACLE surface, easy clip-on mounting, and are included free (unlike the other guys) with every Vega light sold.
-
VEGA 20W Series 2 What’s Included:

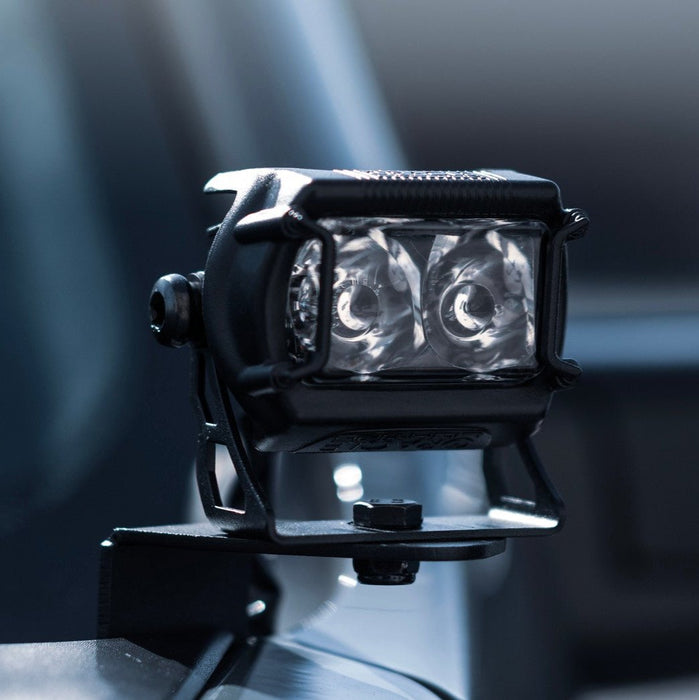

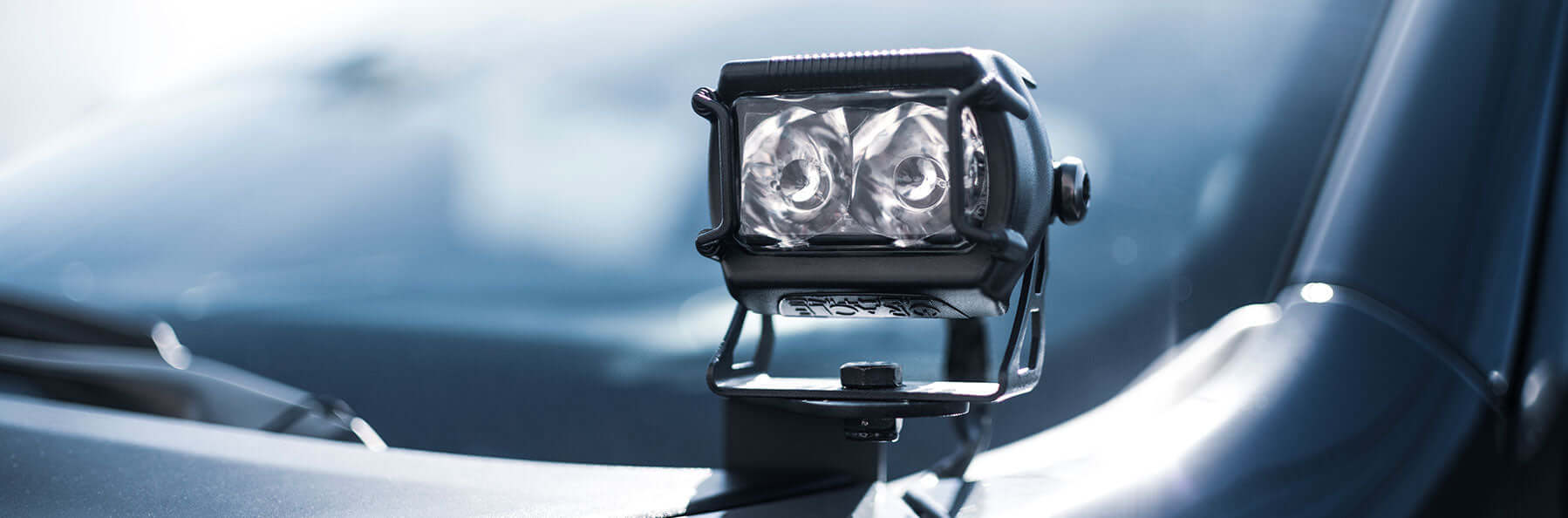

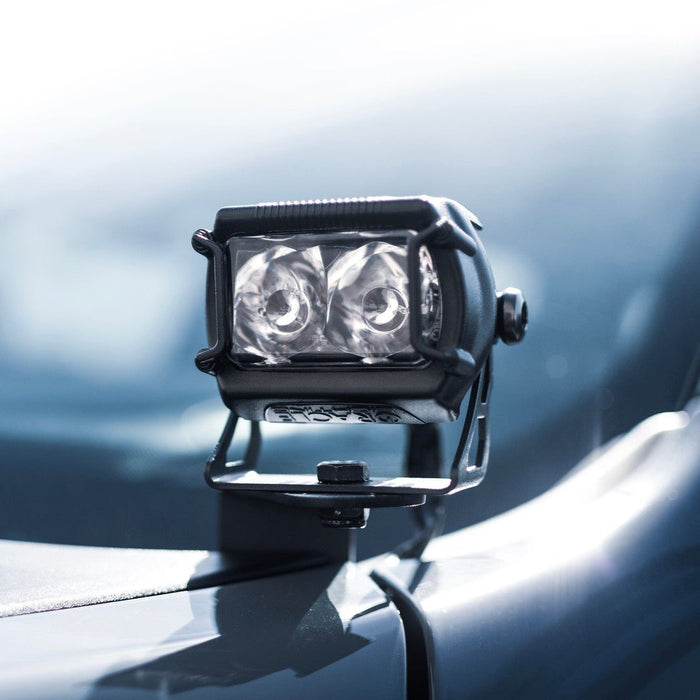

- (2) Vega 20W Series 2 Spotlights
- (2) Deutsch DT 24” Cable Whips
- (2) Black-Out Lens Covers
- (2) Standard Universal Brackets
- (2) Stainless Steel Hardware Set
VEGA 40W Series 4 What’s Included:

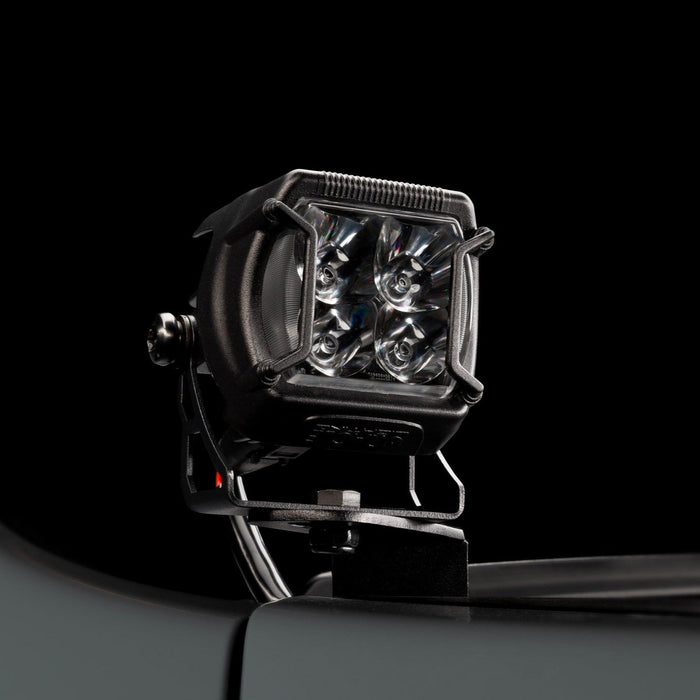

- (2) Vega 40W Series 4 Spotlights
- (2) Deutsch DT 24” Cable Whips
- (2) Black-Out Lens Covers
- (2) Standard Universal Brackets
- (2) Stainless Steel Hardware Set(20W Series 2) Accessories: (NOT INCLUDED)
- Vega Series 2 Amber Lens Cover (Snap Fit) - $19.95/ Pair
- Vega Series 2 Yellow Lens Cover (Snap Fit) - $19.95/ Pair
- Dual Output Deutsch DT Relay Harness with Switch (20A Max) - $41.95(40W Series 4) Accessories: (NOT INCLUDED)
- Vega Series 4 Amber Lens Cover (Snap Fit) - $19.95/ Pair
- Vega Series 4 Yellow Lens Cover (Snap Fit) - $19.95/ Pair
- Dual Output Deutsch DT Relay Harness with Switch (20A Max) - $41.95
-
-
VEGA™ SERIES 2 SPECIFICATIONS

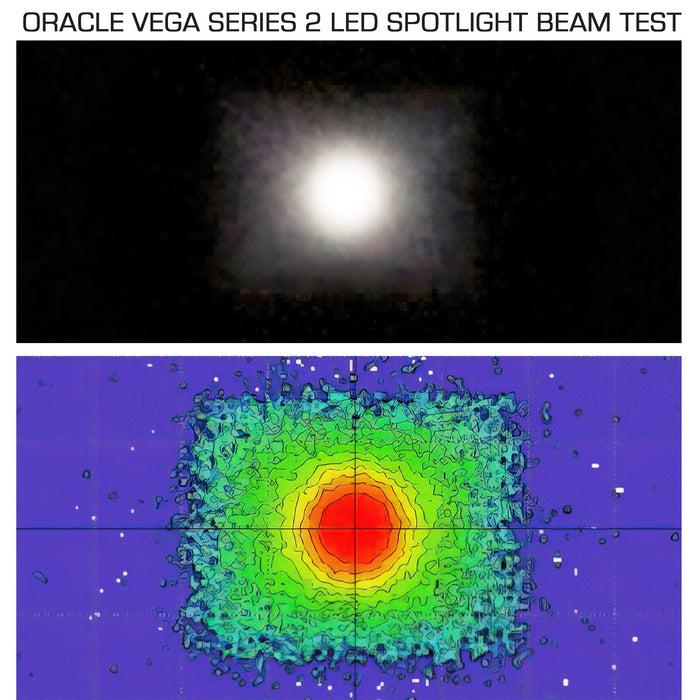

Beam Angle:
Spot Light
Power Draw:
1.35A
LED Chip:
OSRAM KW CSLNM1.TG
Chip Power:
10W x 2 LED (20W)
CCT Color Temp:
6000K
Operating Temp:
-40°F to 185°F
RAW Lumens:
2,000 lm

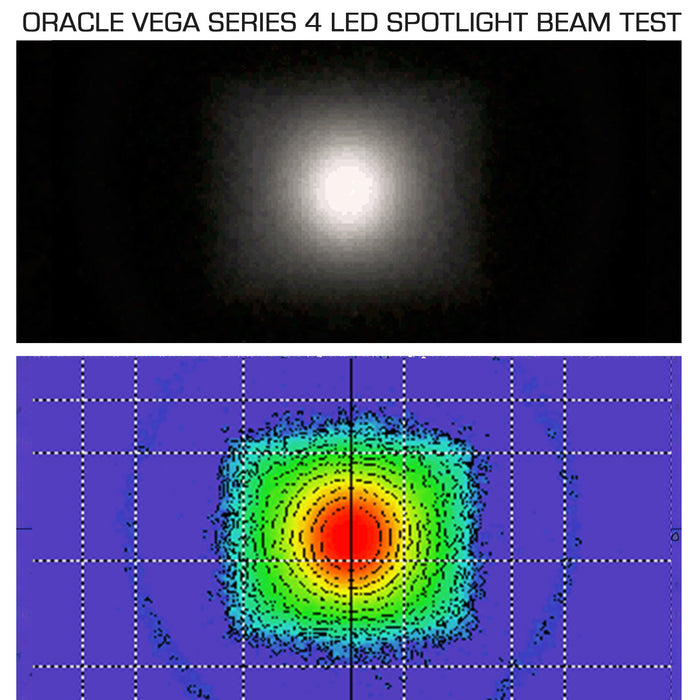

Candela (10 Meters):
96,730 cd
Lux (10 Meters):
967.3 lux

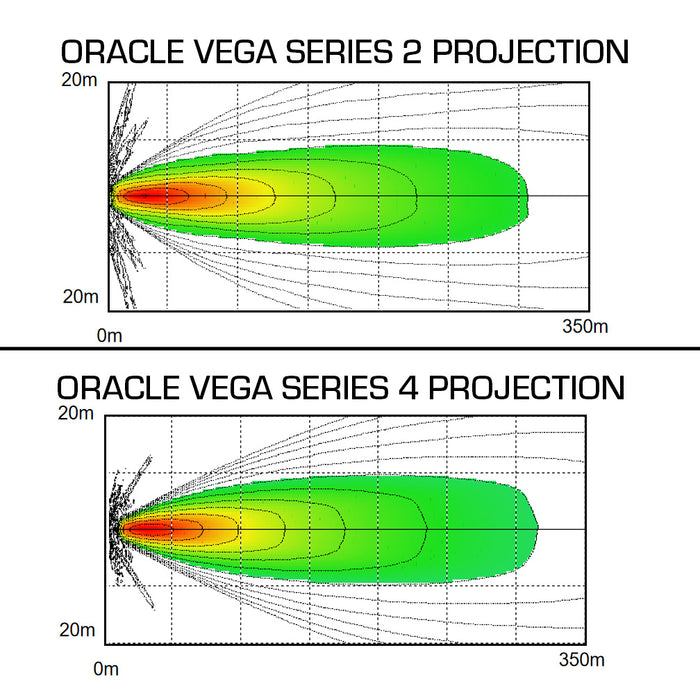

Projection Distance:
988 Ft
Connector Type:
Deutsch DT 2-Pin
Lens Material:
Polycarbonate
Housing Meaterial:
Powdercoated Aluminum
Mounting Hardware:
304 Stainless Steel
Ingress Protection:
IP69K
Lamp Dimensions:
60mm x 63mm x 80mm
Lamp Weight:
1.25 lbs
Warranty Term:
5 YEARS
VEGA™ SERIES 4 SPECIFICATIONS
Beam Angle:
Spot Light
Power Draw:
1.5A
LED Chip:
OSRAM KW CSLNM1.TG
Chip Power:
10W x 4 LED (40W)
CCT Color Temp:
6000K
Operating Temp:
-40°F to 185°F
RAW Lumens:
4,000 lm
Candela (10 Meters):
99,680 cd
Lux (10 Meters):
996.8 lux
Projection Distance:
1,049 Ft
Connector Type:
Deutsch DT 2-Pin
Lens Material:
Polycarbonate
Housing Meaterial:
Powdercoated Aluminum
Mounting Hardware:
304 Stainless Steel
Ingress Protection:
IP69K
Lamp Dimensions:
75mm x 85mm x 82mm
Lamp Weight:
1.67 lbs
Warranty Term:
5 YEARS
